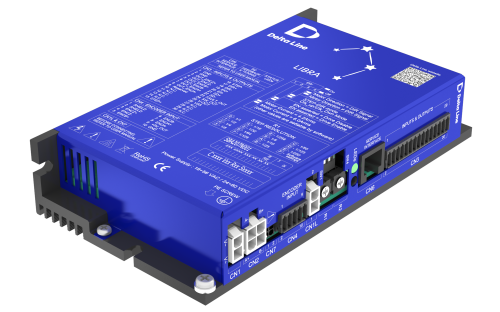

LIBRA - SBA207 N001-S200

Product Code: SBA207N001-S200

Technical Data

Download

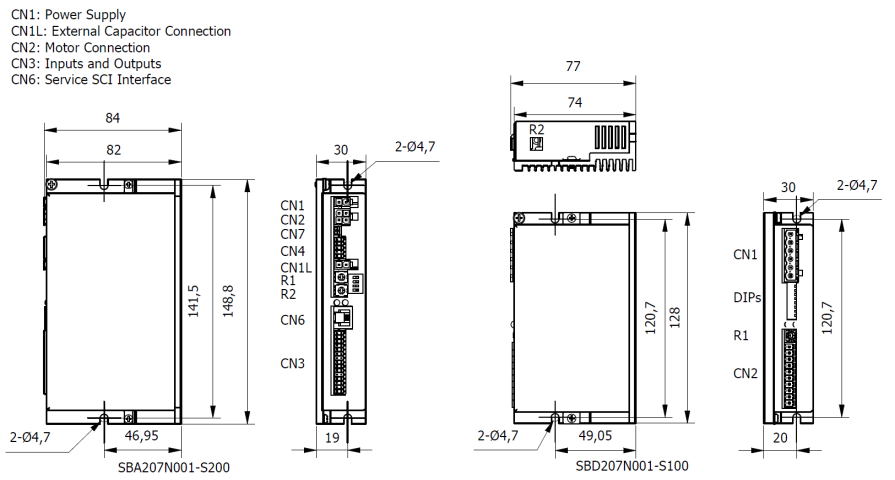

Dimensions

Combinations

Software

Accessories

Interface	Clock & Direction	Power Supply	18 - 56 VAC
Phase Current up to	7.1 A rms	Peak Current	10 A peak
Open / Closed Loop	Closed Loop	Chopper frequency	40 kHz
Weight	290 g	Operating mode	From fullstep to 1/256 step (emulated)
Protective functions	Over current, over/under voltage, overheating, short circuit	Protection Class	IP20
Pollution degree	2	Operating Temperature	+5 / +40°C
Humidity	5 - 85%	Digital Inputs	4 opto-coupled
Digital Outputs	2 opto-coupled
