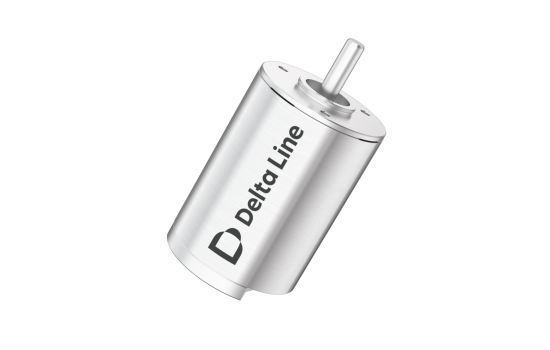

Brushless DC Slotless motors

The self supported rotor of our slotless brushless DC motors, generates low cogging torque and results in very smooth running characteristics. Since there is no iron core, these slotless BLDC motors are able to deliver high speed and acceleration. Our slotless BLDC motor range offers diameters from 10 to 40mm with rated speed up to 61'800rpm.


More about BLDC Slotless motors

Brushless DC Slotless motors
.

Products
Product finder
Technology:
Category:
More Filters
10SBL
BLDC Slotless motors - BL series
Size (mm) 10
Length (L) (mm) 19,4
Rated Voltage (Vdc) 3,7
Rated Torque (Nm) 0,0005
Rated Speed (rpm) 7000
14SBL
BLDC Slotless motors - BL series
Size (mm) 14
Length (L) (mm) 32
Rated Voltage (Vdc) 6
Rated Torque (Nm) 0,004
Rated Speed (rpm) 10000
16SBL
BLDC Slotless motors - BL series
Size (mm) 16
Length (L) (mm) 28 - 56
Rated Voltage (Vdc) 12 -24
Rated Torque (Nm) 0,002 - 0,009
Rated Speed (rpm) 22000 - 25000
16EC -P
BLDC Slotless motors - EC series
Size (mm) 16
Length (L) (mm) 24 - 36
Rated Voltage (Vdc) 6 -24
Rated Torque (Nm) 0,003 - 0,008
Rated Speed (rpm) 5690 - 7350
16EC - NS Speed
BLDC Slotless motors - EC series
Size (mm) 16
Length (L) (mm) 40 - 56
Rated Voltage (Vdc) 18 -48
Rated Torque (Nm) 0,007 - 0,016
Rated Speed (rpm) 50800 - 61800
22SBL
BLDC Slotless motors - BL series
Size (mm) 22
Length (L) (mm) 40 - 70
Rated Voltage (Vdc) 24 - 36
Rated Torque (Nm) 0,006 - 0,025
Rated Speed (rpm) 22000 - 35000
22EC -P
BLDC Slotless motors - EC series
Size (mm) 22
Length (L) (mm) 32 - 48,5
Rated Voltage (Vdc) 6 - 48
Rated Torque (Nm) 0,010 - 0,023
Rated Speed (rpm) 7920 - 10500
22EC -NS Speed
BLDC Slotless motors - EC series
Size (mm) 22
Length (L) (mm) 44,5 - 60
Rated Voltage (Vdc) 18 -48
Rated Torque (Nm) 0,018 - 0,029
Rated Speed (rpm) 47800 - 55600
22EC -T - Power
BLDC Slotless motors - EC series
Size (mm) 22
Length (L) (mm) 48,6 - 66
Rated Voltage (Vdc) 24 - 48
Rated Torque (Nm) 0,043 - 0,055
Rated Speed (rpm) 14900 - 15800
28SBL
BLDC Slotless motors - BL series
Size (mm) 28
Length (L) (mm) 44 - 80
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,018 - 0,06
Rated Speed (rpm) 6000 - 14000
30EC -P
BLDC Slotless motors - EC series
Size (mm) 30
Length (L) (mm) 42 -64
Rated Voltage (Vdc) 24 -48
Rated Torque (Nm) 0,034 - 0,064
Rated Speed (rpm) 7210 - 8130
30EC -T - Power
BLDC Slotless motors - EC series
Size (mm) 30
Length (L) (mm) 47 -64
Rated Voltage (Vdc) 24 -48
Rated Torque (Nm) 0,069 0,096
Rated Speed (rpm) 16000 - 16400
40SBL
BLDC Slotless motors - BL series
Size (mm) 40
Length (L) (mm) 65 - 85
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,2 - 0,25
Rated Speed (rpm) 5700 - 8700
40EC -P
BLDC Slotless motors - EC series
Size (mm) 40
Length (L) (mm) 58 -88
Rated Voltage (Vdc) 24 - 48
Rated Torque (Nm) 0,09 - 0,21
Rated Speed (rpm) 2670 - 6520
