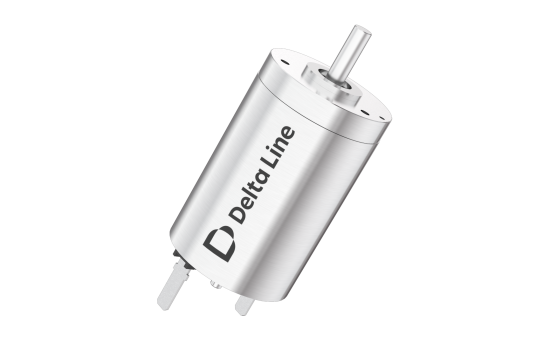

Brushed DC Coreless motors

Developed with a highly efficient ironless motor winding technology, these range offers compact, light and powerful drives with low inertia. Our brushed coreless DC motors deliver superior torque density and very high acceleration performances. Ranging from micro coreless 8mm diameter motors to larger 35mm solutions, these motors can be assembled with precious metal or graphite brushes.


More about Brushed DC Coreless motors

Brushed DC Coreless motors
.

Products
Product finder
Technology:
Category:
More Filters
08DC -N
BDC Coreless motors
Size (mm) 8
Length (L) (mm) 16
Rated Voltage (Vdc) 6 - 12
Rated Torque (mNm) 0,6
Rated Speed (rpm) 4190 - 5800
10DC -N
BDC Coreless motors
Size (mm) 10
Length (L) (mm) 17 - 25
Rated Voltage (Vdc) 3 - 12
Rated Torque (mNm) 0,9 - 2
Rated Speed (rpm) 3310 - 6930
12DC -N
BDC Coreless motors
Size (mm) 12
Length (L) (mm) 19 - 28
Rated Voltage (Vdc) 3 - 12
Rated Torque (mNm) 1,9 - 3,9
Rated Speed (rpm) 3620 - 6230
16DC -P
BDC Coreless motors - Economy
Size (mm) 16
Length (L) (mm) 25
Rated Voltage (Vdc) 6 - 24
Rated Torque (mNm) 3,7 - 4,8
Rated Speed (rpm) 4210 - 6770
16DC -N
BDC Coreless motors
Size (mm) 16
Length (L) (mm) 26 - 40
Rated Voltage (Vdc) 3 - 24
Rated Torque (mNm) 3,7 - 11,3
Rated Speed (rpm) 3200 - 11000
22DC -P
BDC Coreless motors - Economy
Size (mm) 22
Length (L) (mm) 32
Rated Voltage (Vdc) 6 -24
Rated Torque (mNm) 8,5 - 12,6
Rated Speed (rpm) 3440 - 5350
22DC -N
BDC Coreless motors
Size (mm) 22
Length (L) (mm) 34 - 47
Rated Voltage (Vdc) 6 -48
Rated Torque (mNm) 10,7 - 30,5
Rated Speed (rpm) 4000 - 11400
26DC -P
BDC Coreless motors - Economy
Size (mm) 26
Length (L) (mm) 44
Rated Voltage (Vdc) 12 - 48
Rated Torque (mNm) 20,8 - 28,8
Rated Speed (rpm) 3450 - 8100
26DC -N
BDC Coreless motors
Size (mm) 26
Length (L) (mm) 57
Rated Voltage (Vdc) 9 - 48
Rated Torque (mNm) 32,9 - 59,1
Rated Speed (rpm) 4570 - 9730
32DC -N
BDC Coreless motors
Size (mm) 32
Length (L) (mm) 72
Rated Voltage (Vdc) 12 - 48
Rated Torque (mNm) 89,4 - 123
Rated Speed (rpm) 6560 - 7710
35DC -N
BDC Coreless motors
Size (mm) 35
Length (L) (mm) 70
Rated Voltage (Vdc) 12 - 48
Rated Torque (mNm) 77,7 - 138
Rated Speed (rpm) 6140 - 7610
