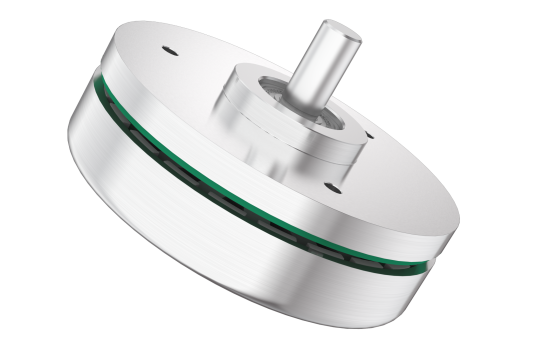

Brushless DC Flat motors

The specific external rotor design of flat brushless DC motors gives these products an exceptional power to volume ratio, while keeping them very light and compact. Thanks to a high number of poles, these flat high torque DC motors offer very good control also at low speed. Our flat BLDC motor range offers a wide variety of sizes with reduced length.


More about BLDC Flat motors

Brushless DC Flat motors
.

Products
Product finder
Technology:
Category:
More Filters
20BLW
BLDC Flat motors
Size (mm) 20
Length (L) (mm) 14
Rated Voltage (Vdc) 12 - 24
Rated Torque (Nm) 0,0075 - 0,0077
Rated Speed (rpm) 5170 - 5220
32BLW
BLDC Flat motors
Size (mm) 32
Length (L) (mm) 17,9
Rated Voltage (Vdc) 9 -48
Rated Torque (Nm) 0,025 - 0,026
Rated Speed (rpm) 2100 - 2950
45BLW - flat cable
BLDC Flat motors
Size (mm) 45
Length (L) (mm) 16
Rated Voltage (Vdc) 12
Rated Torque (Nm) 0,055
Rated Speed (rpm) 2910
45BLW - connector
BLDC Flat motors
Size (mm) 45
Length (L) (mm) 18 - 27
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,05 - 0,13
Rated Speed (rpm) 4840 - 5260
45BLW - wires
BLDC Flat motors
Size (mm) 45
Length (L) (mm) 18 - 27
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,05 - 0,13
Rated Speed (rpm) 4840 - 5260
60BLW
BLDC Flat motors
Size (mm) 60
Length (L) (mm) 38 - 42
Rated Voltage (Vdc) 24 - 48
Rated Torque (Nm) 0,3 - 0,5
Rated Speed (rpm) 3400 - 3700
90BLW
BLDC Flat motors
Size (mm) 90
Length (L) (mm) 27 - 40
Rated Voltage (Vdc) 24 -60
Rated Torque (Nm) 0,457 - 0,964
Rated Speed (rpm) 1610 - 2720
