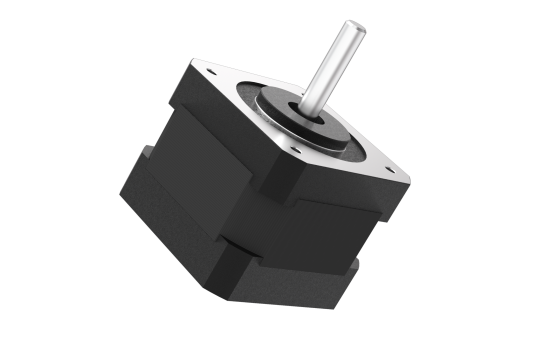

Hybrid Stepper motors

Hybrid stepper motors combine the best features of both the PM and Variable Reluctance stepper motors. This highly reliable technology increases detent and offers high torque and high speed performances. Our 2-phase hybrid stepper motor range offers sizes from 14 to 110mm with 0,9° or 1,8° step angle options.


More about Hybrid Stepper motors

Hybrid Stepper motors
.

Products
Product finder
Technology:
Category:
More Filters
14SH
Hybrid Stepper motors - SH series
Nema 06
Length (L) (mm) 30
Current/Phase (A) 0,3
Holding Torque (Nm) 0,0062
Step Angle (°) 1,8
20SH
Hybrid Stepper motors - SH series
Nema 08
Length (L) (mm) 33 - 42
Current/Phase (A) 0,6 - 0,8
Holding Torque (Nm) 0,0176 - 0,03
Step Angle (°) 1,8
20STC
Hybrid Stepper motors - STC series
Nema 08
Length (L) (mm) 33 - 40
Current/Phase (A) 0,6 - 0,8
Holding Torque (Nm) 0,022 - 0,036
Step Angle (°) 1,8
25SH
Hybrid Stepper motors - SH series
Nema 10
Length (L) (mm) 23
Current/Phase (A) 0,7
Holding Torque (Nm) 0,033
Step Angle (°) 1,8
28SH
Hybrid Stepper motors - SH series
Nema 11
Length (L) (mm) 32 - 51
Current/Phase (A) 0,67 - 0,95
Holding Torque (Nm) 0,043 - 0,12
Step Angle (°) 1,8
28STC
Hybrid Stepper motors - STC series
Nema 11
Length (L) (mm) 32 - 51
Current/Phase (A) 0,67 - 1,5
Holding Torque (Nm) 0,08 - 0,18
Step Angle (°) 1,8
35SH
Hybrid Stepper motors - SH series
Nema 14
Length (L) (mm) 26 - 36
Current/Phase (A) 0,28 - 1
Holding Torque (Nm) 0,07 - 0,14
Step Angle (°) 1,8
39SH
Hybrid Stepper motors - SH series
Nema 16
Length (L) (mm) 20 - 38
Current/Phase (A) 0,3 - 0,8
Holding Torque (Nm) 0,065 - 0,29
Step Angle (°) 1,8
42SH
Hybrid Stepper motors - SH series
Nema 17
Length (L) (mm) 33,5 - 60
Current/Phase (A) 0,31 - 3
Holding Torque (Nm) 0,158 - 0,8
Step Angle (°) 1,8
42SH - 0.9° step
Hybrid Stepper motors - SH series
Nema 17
Length (L) (mm) 33,5 - 47,5
Current/Phase (A) 0,31 - 1,68
Holding Torque (Nm) 0,158 - 0,44
Step Angle (°) 0,9
57S
Hybrid STP motors - S series
Nema 23
Length (L) (mm) 41 - 76
Current/Phase (A) 0,42 - 3,3
Holding Torque (Nm) 0,288 - 1,25
Step Angle (°) 1,8
57SH
Hybrid Stepper motors - SH series
Nema 23
Length (L) (mm) 41 - 76
Current/Phase (A) 1 -3
Holding Torque (Nm) 0,39 - 1,89
Step Angle (°) 1,8
57SH - 0.9° step
Hybrid Stepper motors - SH series
Nema 23
Length (L) (mm) 41 - 76
Current/Phase (A) 1 -3
Holding Torque (Nm) 0,39 - 1,89
Step Angle (°) 0,9
57STC
Hybrid Stepper motors - STC series
Nema 23
Length (L) (mm) 41 - 76
Current/Phase (A) 2,8 - 4,2
Holding Torque (Nm) 0,6 - 2,3
Step Angle (°) 1,8
60SH
Hybrid Stepper motors - SH series
Nema 24
Length (L) (mm) 45 - 86
Current/Phase (A) 2,8
Holding Torque (Nm) 1,1 - 3,1
Step Angle (°) 1,8
86S
Hybrid Stepper motors - S series
Nema 34
Length (L) (mm) 67 - 125
Current/Phase (A) 3,92 - 4,9
Holding Torque (Nm) 2,8 - 7,6
Step Angle (°) 1,8
86SH
Hybrid Stepper motors - SH series
Nema 34
Length (L) (mm) 65 - 156
Current/Phase (A) 5,5 - 6,2
Holding Torque (Nm) 3,4 - 12,1
Step Angle (°) 1,8
110SH
Hybrid Stepper motors - SH series
Nema 42
Length (L) (mm) 99 - 201
Current/Phase (A) 5,5 - 8
Holding Torque (Nm) 11,2 - 28
Step Angle (°) 1,8
