Slotted Brushless Motors, Internal Rotor Motor | Delta Line

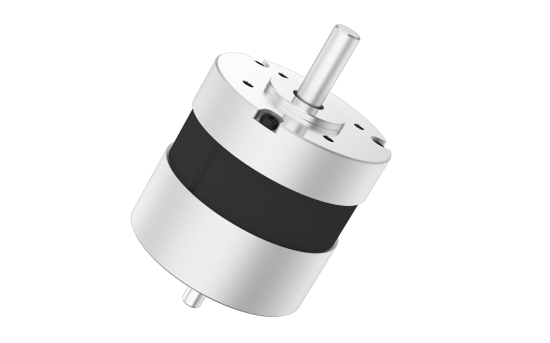

Brushless DC Slotted motors

One of the benefits of DC brushless motors with internal rotor, lies in their better dissipation of the generated heat. Thanks to the reduced air gap in brushless DC slotted motors, the flux density is higher and torque production is more effective and efficient. Our slotted BLDC motor range offers diameters from 22 to 86mm with rated torque up to 2.2Nm.


More about BLDC Slotted motors

Brushless DC Slotted motors
.

Products
Product finder
Technology:
Category:
More Filters
22BL
BLDC Slotted motors - BL series
Size (mm) 22
Length (L) (mm) 45 - 68
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,008 - 0,02
Rated Speed (rpm) 3800 - 4600
22EC -N
BLDC Slotted motors - EC series
Size (mm) 22
Length (L) (mm) 43 - 82
Rated Voltage (Vdc) 12 - 48
Rated Torque (Nm) 0,029 - 0,08
Rated Speed (rpm) 5000 - 13100
24CBL
BLDC Slotted motors - CBL series
Size (mm) 24
Length (L) (mm) 30
Rated Voltage (Vdc) 12
Rated Torque (Nm) 0,006
Rated Speed (rpm) 4000
28CBL
BLDC Slotted motors - CBL series
Size (mm) 28
Length (L) (mm) 38 - 48
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,028 - 0,05
Rated Speed (rpm) 4000 - 4500
28BL
BLDC Slotted motors - BL series
Size (mm) 28
Length (L) (mm) 26 - 77
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,005 - 0,05
Rated Speed (rpm) 3100 - 8000
33BL
BLDC Slotted motors - BL series
Size (mm) 33
Length (L) (mm) 38 - 80
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,022 - 0,05
Rated Speed (rpm) 3000 - 7800
36CBL
BLDC Slotted motors - CBL series
Size (mm) 36
Length (L) (mm) 30 - 65
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,016 - 0,09
Rated Speed (rpm) 4500 - 4800
38CBL
BLDC Slotted motors - CBL series
Size (mm) 38
Length (L) (mm) 58
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,07
Rated Speed (rpm) 4000
40BL
BLDC Slotted motors - BL series
Size (mm) 40
Length (L) (mm) 26 - 36
Rated Voltage (Vdc) 12 - 36
Rated Torque (Nm) 0,043 - 0,083
Rated Speed (rpm) 8230 - 10300
42CBL -CBLA
BLDC Slotted motors - CBL series
Size (mm) 42
Length (L) (mm) 60 - 66
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,068 - 0,15
Rated Speed (rpm) 3200 - 5900
42BL -BLA -BLB
BLDC Slotted motors - BL series
Size (mm) 42
Length (L) (mm) 41 - 100
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,0625 - 0,43
Rated Speed (rpm) 3000 - 4000
42RBL
BLDC Slotted motors - BL series
Size (mm) 42
Length (L) (mm) 30 - 85
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,02 - 0,15
Rated Speed (rpm) 4000
48CBL
BLDC Slotted motors - CBL series
Size (mm) 48
Length (L) (mm) 68
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,18
Rated Speed (rpm) 3000
57BL -BLA
BLDC Slotted motors - BL series
Size (mm) 57
Length (L) (mm) 45 - 116
Rated Voltage (Vdc) 36
Rated Torque (Nm) 0,055 - 0,8
Rated Speed (rpm) 4000
57BLB
BLDC Slotted motors - BL series
Size (mm) 57
Length (L) (mm) 76 - 116
Rated Voltage (Vdc) 36
Rated Torque (Nm) 0,3 - 0,6
Rated Speed (rpm) 3000
70BLS
BLDC Slotted motors - BL series
Size (mm) 70
Length (L) (mm) 86 - 136
Rated Voltage (Vdc) 48
Rated Torque (Nm) 0,5 - 1,5
Rated Speed (rpm) 3000
80BLS
BLDC Slotted motors - BL series
Size (mm) 80
Length (L) (mm) 84 - 140
Rated Voltage (Vdc) 48
Rated Torque (Nm) 0,9 - 3
Rated Speed (rpm) 3000
86BLC
BLDC Slotted motors - BL series
Size (mm) 86
Length (L) (mm) 64 - 125
Rated Voltage (Vdc) 48
Rated Torque (Nm) 0,4 - 2,22
Rated Speed (rpm) 3000
86BLS
BLDC Slotted motors - BL series
Size (mm) 86
Length (L) (mm) 58 - 125
Rated Voltage (Vdc) 48
Rated Torque (Nm) 0,35 - 2,1
Rated Speed (rpm) 3000
