Stepless Control Technology (65536 emulated positions per turn)
Over current, over/under voltage, overheating, short circuit
+5 / +40°C
5 - 85%
4 not isolated
3 not isolated
1 for potentiometer or ±10 Vdc
5V Single-Ended (TTL/CMOS) or 24V Push-Pull incremental encoder (not isolated)

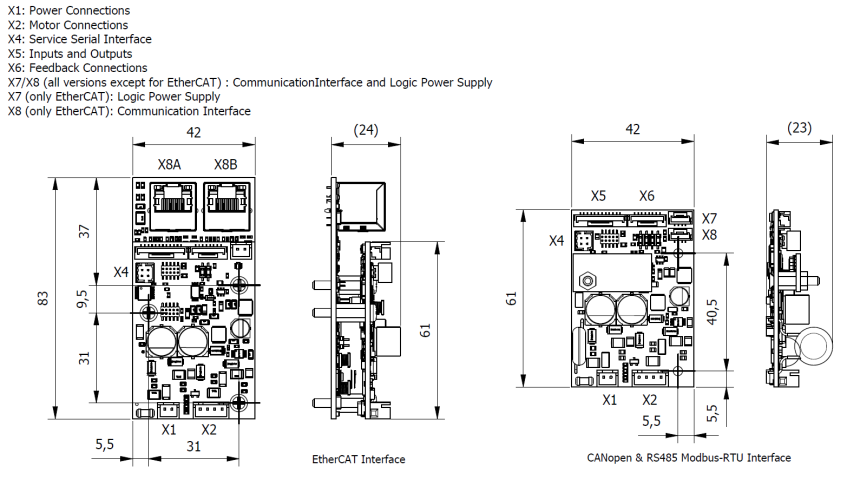

3D STEP file
All motors and servomotors with Phase Current up to 3A rms.
Custom combinations are available on request. Contact us
DL Studio is a PC Window program that allows the configuration and debugging of all stepper and brushless motor and drives. Easy and intuitive, DL Studio allows users to configure of all the main operating parameters through guided procedures, real-time monitoring of all the operating parameters and allowing access to the alarm history memory.
With DL Studio it is possible to create configuration profiles and save them to your PC to be downloaded in each new drive depending on the needs of the application. In addition, it also allows you to update the firmware version of our drives.
DL Space is the innovative visual programming environment for our drivers. This software does not require the learning of a text language but, through a graphic programming and guided windows, it allows the creation of multitasking programs exploiting all the functionalities of the DL drives with S200 firmware.
The programs realized with DL Space allow to exploit all the low-level control modes of our programmable drives for both brushless and stepper motors, including multiple homing modes, the electric shaft, the electronic range and many other functions.
Application debugging can be carried out quickly and easily thanks to the dedicated windows that include a virtual oscilloscope to monitor the actual motor movements.
