SM57 070-IP

SM57 070-IP

Product Code: SM57070-42S4-IP.000

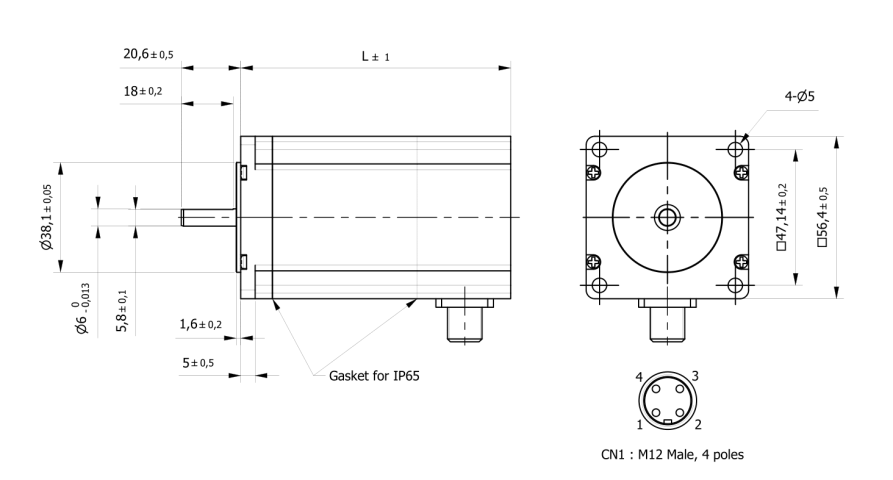

Technical Data Download Dimensions Combinations
Nema23 Max. Radial Force (on shaft end)75 N
Size57 mmRated Voltage1.7 Vdc
Current/Phase4.20 AResistance/Phase0.40 Ohm
Inductance/Phase1.20 mHHolding Torque1.20 Nm
Rotor Inertia300 gcm2Weight0.70 Kg
Length (L)70 mmN° of Leads4
Step Angle1.8 °Step Angle accuracy± 5 %
Insulation ClassB Operating Temperature- 20°C + 50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CInsulation Resistance (min.500 VDC)100 Mohm
Dielectric Strength (for 1min.)500 VACRadial Play (450g load)0.02 Max mm
Axial Play (450g load)0.08 Max mmMax. Axial Force15 N
Protection ClassIP65
