Phoenix B100

PHOENIX - B100O05M3 E001-S402

PHOENIX - B100O05M3 E001-S402

Product Code: B100O05M3 E001-S402

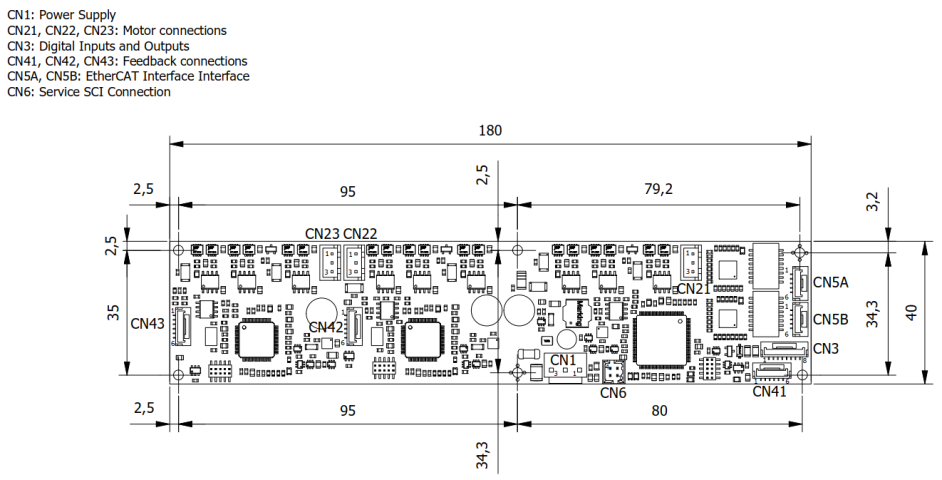

Technical Data Download Dimensions Combinations Software Accessories
Number of Axis3 InterfaceEtherCAT
ProgrammableOnly configuration Operating modeProfile position/ velocity/ homing mode, Cycling sync position/ velocity/ torque mode
Phase Current up to3 (per axis) A rmsPeak Current5 (for 2s. per axis) A peak
Power Supply12 - 48 VDC Logic Power Supply12 - 48VDC (optional)
Motor Power100 WChopper frequency40 kHz
Weight200 gOpen / Closed LoopClosed Loop
Protective functionsOver current, Over/Under Voltage, Overheating, Short circuit Protection ClassIP00
Pollution degree2 CategoryC3 following standard EN 61800-3
Operating Temperature+5 / +40°C Humidity5 - 85%
Digital Inputs3 Digital Outputs3
Encoder Inputs5V Single-Ended (TTL/CMOS) or 24V Push-Pull incremental encoder (not isolated) Hall Input5V Single-Ended (TTL/CMOS) hall effect sensor
