Scorpius

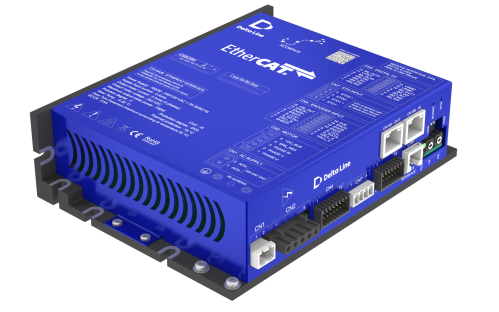

SCORPIUS - A750B12 E001-S402

SCORPIUS - A750B12 E001-S402

Product Code: A750B12 E001-S402

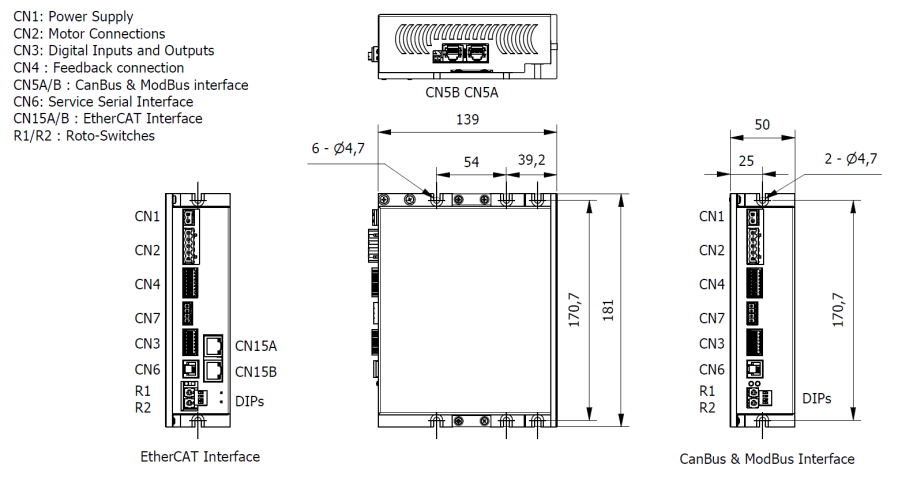

Technical Data Download Dimensions Combinations Software Accessories
InterfaceEtherCAT Power Supply100 - 240 VAC
Phase Current up to3 A rmsPeak Current12 A peak
Open / Closed LoopClosed Loop Safety featureSafe Torque Off (STO) SIL3/PLe
Logic Power Supply24 VDC (optional) Chopper frequency40 kHz
Weight800 gOperating modeProfile position/velocity/homing mode, Cyclic sync position/velocity/torque mode
Protective functionsOver current, Over/Under Voltage, Overheating, Short circuit Protection ClassIP20
Pollution degree2 Operating Temperature+5 / +50°C
Humidity5 - 85% Digital Inputs4 opto-coupled
Digital Outputs3 opto-coupled Encoder Inputs5V Differential (RS422) or 5V Single-Ended (TTL/CMOS) or absolute SSI or BiSS-C
Hall Input5 V Single-Ended (TTL/CMOS) (isolated)
