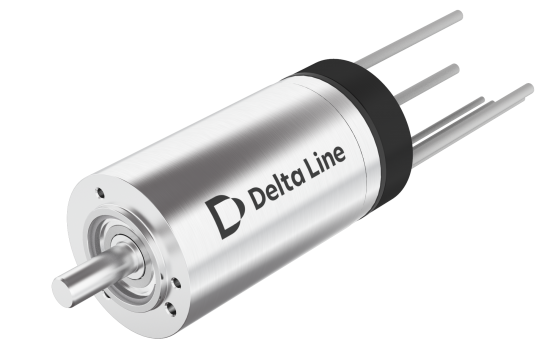

22EC -N

One of the benefits of DC brushless motors with internal rotor, lies in their better dissipation of the generated heat. Thanks to the reduced air gap in brushless DC slotted motors, the flux density is higher and torque production is more effective and efficient.

More about BLDC Slotted motors

Products

Product finder

Technology:

Category:

More Filters

Product name

Series

Size (mm)

Length (L) (mm)

Rated Voltage (Vdc)

Rated Torque (Nm)

Rated Speed (rpm)


22EC43N-24V	EC	22	43	24	0.029	13100
22EC43N-48V	EC	22	43	48	0.032	10900
22EC58N-12V	EC	22	58.5	12	0.046	7930
22EC58N-24V	EC	22	58.5	24	0.048	8850
22EC58N-48V	EC	22	58.5	48	0.049	9380
22EC82N-24V	EC	22	82	24	0.078	5000
22EC82N-48V	EC	22	82	48	0.08	5320
