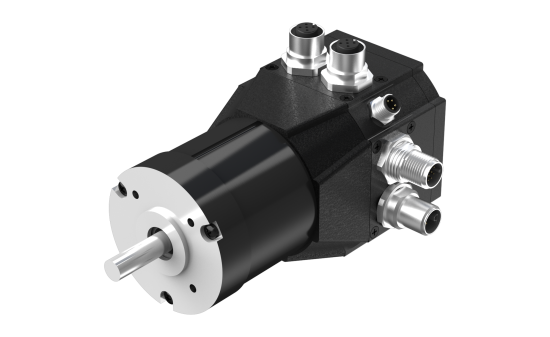

IBIX57A -IP65

Our BLDC motors with integrated controller offer the compactness of a standard motor together with all the features of our drives. These motors have digital inputs and outputs and an analogue input, and can be also equipped with several Fieldbuses such as: CANopen, Modbus RTU, EtherCAT, Modbus TCP/IP, Profinet, EtherNet/IP, Powerlink. These models are IP65 rated as standard so that they can be used in a wide variety of environments without concern.


More about BLDC motors with Motion controller

Available with:
- Safe Torque Off (STO) SIL3/PLe
- Magnetic Absolute Multiturn (BiSS) Encoder: 17 bit, 16 bit
 		IBIX57A -IP65
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
CANopen
CANopen
CANopen (programmable)
EtherCAT
Ethernet IP
Modbus-RTU
Modbus TCP
Powerlink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Torque (Nm)
Rated Power (Watt)
Operating Voltage (Vdc)
IBIX57A 084NX100X M-S200 57 97 Modbus-RTU 0.2 84 24-48
IBIX57A 084NX100X C-S200 57 97 CANopen (programmable) 0.2 84 24-48
IBIX57A 084NX100X C-S402 57 97 CANopen 0.2 84 24-48
IBIX57A 084NXX00X E-S402 57 97 EtherCAT 0.2 84 24-48
IBIX57A 084NXX00X T-S200 57 97 Modbus TCP 0.2 84 24-48
IBIX57A 084NX200X P-S200 57 97 Profinet 0.2 84 24-48
IBIX57A 084NX200X R-S402 57 97 Powerlink 0.2 84 24-48
IBIX57A 084NX200X H-S200 57 97 Ethernet IP 0.2 84 24-48
IBIX57A 168NX100X M-S200 57 117 Modbus-RTU 0.4 168 24-48
IBIX57A 168NX100X C-S200 57 117 CANopen (programmable) 0.4 168 24-48
IBIX57A 168NX100X C-S402 57 117 CANopen 0.4 168 24-48
IBIX57A 168NXX00X E-S402 57 117 EtherCAT 0.4 168 24-48
IBIX57A 168NXX00X T-S200 57 117 Modbus TCP 0,4 168 24-48
IBIX57A 168NX200X P-S200 57 117 Profinet 0.4 168 24-48
IBIX57A 168NX200X R-S402 57 117 Powerlink 0.4 168 24-48
IBIX57A 168NX200X H-S200 57 117 Ethernet IP 0.4 168 24-48
IBIX57A 251NX100X M-S200 57 137 Modbus-RTU 0.6 251 24-48
IBIX57A 251NX100X C-S200 57 137 CANopen (programmable) 0.6 251 24-48
IBIX57A 251NX100X C-S402 57 137 CANopen 0.6 251 24-48
IBIX57A 251NXX00X E-S402 57 137 EtherCAT 0.6 251 24-48
IBIX57A 251NXX00X T-S200 57 137 Modbus TCP 0.6 251 24-48
IBIX57A 251NX200X P-S200 57 137 Profinet 0.6 251 24-48
IBIX57A 251NX200X R-S402 57 137 Powerlink 0.6 251 24-48
IBIX57A 251NX200X H-S200 57 137 Ethernet IP 0.6 251 24-48
IBIX57A 335NX100X M-S200 57 157 Modbus-RTU 0.8 335 24-48
IBIX57A 335NX100X C-S200 57 157 CANopen (programmable) 0.8 335 24-48
IBIX57A 335NX100X C-S402 57 157 CANopen 0.8 335 24-48
IBIX57A 335NXX00X E-S402 57 157 EtherCAT 0.8 335 24-48
IBIX57A 335NXX00X T-S200 57 157 Modbus TCP 0.8 335 24-48
IBIX57A 335NX200X P-S200 57 157 Profinet 0.8 335 24-48
IBIX57A 335NX200X R-S402 57 157 Powerlink 0.8 335 24-48
IBIX57A 335NX200X H-S200 57 157 Ethernet IP 0.8 335 24-48
