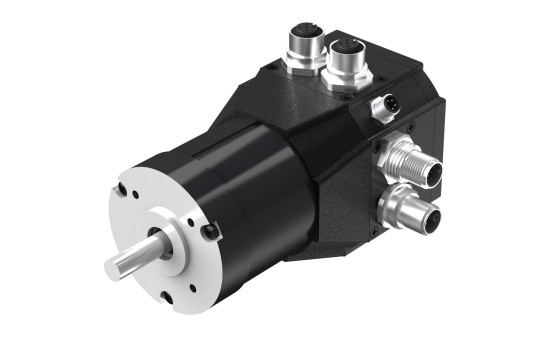

IBIX57A -IP65 with Brake

Home   Products   >   Motors with integrated Controller   >   Brushless DC motors with Motion controller   >   IBIX57A -IP65 with Brake

IBIX57A -IP65 with Brake

Our BLDC motors with integrated controller offer the compactness of a standard motor together with all the features of our drives. These motors have digital inputs and outputs and an analogue input, and can be also equipped with several Fieldbuses such as: CANopen, Modbus RTU, EtherCAT, Modbus TCP/IP, Profinet, EtherNet/IP, Powerlink. These models are IP65 rated as standard so that they can be used in a wide variety of environments without concern.


More about BLDC motors with Motion controller

Available with:
- Safe Torque Off (STO) SIL3/PLe
- Magnetic Absolute Multiturn (BiSS) Encoder: 17 bit, 16 bit
 		IBIX57A -IP65 with Brake
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
CANopen
CANopen
CANopen (programmable)
EtherCAT
Ethernet IP
Modbus-RTU
Modbus TCP
Powerlink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Torque (Nm)
Rated Power (Watt)
Operating Voltage (Vdc)
Brake
IBIX57A 084BX100X M-S200 57 140 Modbus-RTU 0.2 84 24-48 24VDC - 1,5Nm
IBIX57A 084BX100X C-S200 57 140 CANopen (programmable) 0.2 84 24-48 24VDC - 1,5Nm
IBIX57A 084BX100X C-S402 57 140 CANopen 0.2 84 24-48 24VDC - 1,5Nm
IBIX57A 084BXX00X E-S402 57 140 EtherCAT 0.2 84 24-48 24VDC - 1,5Nm
IBIX57A 084BXX00X T-S200 57 140 Modbus TCP 0.2 84 24-48 24VDC - 1,5Nm
IBIX57A 084BX200X P-S200 57 140 Profinet 0.2 84 24-48 24VDC - 1,5Nm
IBIX57A 084BX200X R-S402 57 140 Powerlink 0.2 84 24-48 24VDC - 1,5Nm
IBIX57A 084BX200X H-S200 57 140 Ethernet IP 0.2 84 24-48 24VDC - 1,5Nm
IBIX57A 168BX100X M-S200 57 160 Modbus-RTU 0.4 168 24-48 24VDC - 1,5Nm
IBIX57A 168BX100X C-S200 57 160 CANopen (programmable) 0.4 168 24-48 24VDC - 1,5Nm
IBIX57A 168BX100X C-S402 57 160 CANopen 0.4 168 24-48 24VDC - 1,5Nm
IBIX57A 168BXX00X E-S402 57 160 EtherCAT 0.4 168 24-48 24VDC - 1,5Nm
IBIX57A 168BXX00X T-S200 57 160 Modbus TCP 0,4 168 24-48 24VDC - 1,5Nm
IBIX57A 168BX200X P-S200 57 160 Profinet 0.4 168 24-48 24VDC - 1,5Nm
IBIX57A 168BX200X R-S402 57 160 Powerlink 0.4 168 24-48 24VDC - 1,5Nm
IBIX57A 168BX200X H-S200 57 160 Ethernet IP 0.4 168 24-48 24VDC - 1,5Nm
IBIX57A 251BX100X M-S200 57 180 Modbus-RTU 0.6 251 24-48 24VDC - 1,5Nm
IBIX57A 251BX100X C-S200 57 180 CANopen (programmable) 0.6 251 24-48 24VDC - 1,5Nm
IBIX57A 251BX100X C-S402 57 180 CANopen 0.6 251 24-48 24VDC - 1,5Nm
IBIX57A 251BX00X E-S402 57 180 EtherCAT 0.6 251 24-48 24VDC - 1,5Nm
IBIX57A 251BXX00X T-S200 57 180 Modbus TCP 0.6 251 24-48 24VDC - 1,5Nm
IBIX57A 251BX200X P-S200 57 180 Profinet 0.6 251 24-48 24VDC - 1,5Nm
IBIX57A 251BX200X R-S402 57 180 Powerlink 0.6 251 24-48 24VDC - 1,5Nm
IBIX57A 251BX200X H-S200 57 180 Ethernet IP 0.6 251 24-48 24VDC - 1,5Nm
IBIX57A 335BX100X M-S200 57 200 Modbus-RTU 0.8 335 24-48 24VDC - 1,5Nm
IBIX57A 335BX100X C-S200 57 200 CANopen (programmable) 0.8 335 24-48 24VDC - 1,5Nm
IBIX57A 335BX100X C-S402 57 200 CANopen 0.8 335 24-48 24VDC - 1,5Nm
IBIX57A 335BXX00X E-S402 57 200 EtherCAT 0.8 335 24-48 24VDC - 1,5Nm
IBIX57A 335BXX00X T-S200 57 200 Modbus TCP 0.8 335 24-48 24VDC - 1,5Nm
IBIX57A 335BX200X P-S200 57 200 Profinet 0.8 251 24-48 24VDC - 1,5Nm
IBIX57A 335BX200X R-S402 57 200 Powerlink 0.8 335 24-48 24VDC - 1,5Nm
IBIX57A 335BX200X H-S200 57 200 Ethernet IP 0.8 335 24-48 24VDC - 1,5Nm
