IBIX57B -IP65

Home   Products   >   Motors with integrated Controller   >   Brushless DC motors with Motion controller   >   IBIX57B -IP65

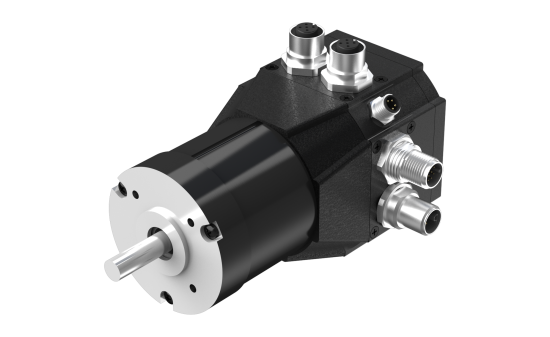

IBIX57B -IP65

Our BLDC motors with integrated controller offer the compactness of a standard motor together with all the features of our drives. These motors have digital inputs and outputs and an analogue input, and can be also equipped with several Fieldbuses such as: CANopen, Modbus RTU, EtherCAT, Modbus TCP/IP, Profinet, EtherNet/IP, Powerlink. These models are IP65 rated as standard so that they can be used in a wide variety of environments without concern.


More about BLDC motors with Motion controller

Available with:
- Safe Torque Off (STO) SIL3/PLe
- Magnetic Absolute Multiturn (BiSS) Encoder: 17 bit, 16 bit
 		IBIX57B -IP65
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
CANopen
CANopen - programmable
EtherCAT
EtherNet/IP
Modbus-RTU
Modbus TCP
PowerLink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Torque (Nm)
Rated Power (Watt)
Operating Voltage (Vdc)
IBIX57B 025NX100X M-S200 57 87 Modbus-RTU 0.06 25 24-48
IBIX57B 025NX100X C-S200 57 87 CANopen - programmable 0.06 25 24-48
IBIX57B 025NX100X C-S402 57 87 CANopen 0.06 25 24-48
IBIX57B 025NXX00X E-S402 57 87 EtherCAT 0.06 25 24-48
IBIX57B 025NXX00X T-S200 57 87 Modbus TCP 0.06 25 24-48
IBIX57B 025NX200X P-S200 57 87 Profinet 0.06 25 24-48
IBIX57B 025NX200X R-S402 57 87 PowerLink 0.06 25 24-48
IBIX57B 025NX200X H-S200 57 87 EtherNet/IP 0.06 25 24-48
IBIX57B 046NX100X M-S200 57 97 Modbus-RTU 0.11 49 24-48
IBIX57B 046NX100X C-S200 57 97 CANopen - programmable 0.11 49 24-48
IBIX57B 046NX100X C-S402 57 97 CANopen 0.11 49 24-48
IBIX57B 046NXX00X E-S402 57 97 EtherCAT 0.11 49 24-48
IBIX57B 046NXX00X T-S200 57 97 Modbus TCP 0.11 49 24-48
IBIX57B 046NX200X P-S200 57 97 Profinet 0.11 49 24-48
IBIX57B 046NX200X R-S402 57 97 PowerLink 0.11 49 24-48
IBIX57B 046NX200X H-S200 57 97 EtherNet/IP 0.11 49 24-48
IBIX57B 092NX100X M-S200 57 117 Modbus-RTU 0.22 92 24-48
IBIX57B 092NX100X C-S200 57 117 CANopen - programmable 0.22 92 24-48
IBIX57B 092NX100X C-S402 57 117 CANopen 0.22 92 24-48
IBIX57B 092NXX00X E-S402 57 117 EtherCAT 0.22 92 24-48
IBIX57B 092NXX00X T-S200 57 117 Modbus TCP 0.22 92 24-48
IBIX57B 092NX200X P-S200 57 117 Profinet 0.22 92 24-48
IBIX57B 092NX200X R-S402 57 117 PowerLink 0.22 92 24-48
IBIX57B 092NX200X H-S200 57 117 EtherNet/IP 0.22 92 24-48
IBIX57B 138NX100X M-S200 57 136 Modbus-RTU 0.33 138 24-48
IBIX57B 138NX100X C-S200 57 136 CANopen - programmable 0.33 138 24-48
IBIX57B 138NX100X C-S402 57 136 CANopen 0.33 138 24-48
IBIX57B 138NXX00X E-S402 57 136 EtherCAT 0.33 138 24-48
IBIX57B 138NXX00X T-S200 57 136 Modbus TCP 0.33 138 24-48
IBIX57B 138NX200X P-S200 57 136 Profinet 0.33 138 24-48
IBIX57B 138NX200X R-S420 57 136 PowerLink 0.33 138 24-48
IBIX57B 138NX200X H-S200 57 136 EtherNet/IP 0.33 138 24-48
IBIX57B 184NX100X M-S200 57 157 Modbus-RTU 0.44 184 24-48
IBIX57B 184NX100X C-S200 57 157 CANopen - programmable 0.44 184 24-48
IBIX57B 184NX100X C-S402 57 157 CANopen 0.44 184 24-48
IBIX57B 184NXX00X E-S402 57 157 EtherCAT 0.44 184 24-48
IBIX57B 184NXX00X T-S200 57 157 Modbus TCP 0.44 184 24-48
IBIX57B 184NX200X P-S200 57 157 Profinet 0.44 184 24-48
IBIX57B 184NX200X R-S402 57 157 PowerLink 0.44 184 24-48
IBIX57B 184NX200X H-S200 57 157 EtherNet/IP 0.44 184 24-48
