IBIX57B -IP65 with Brake

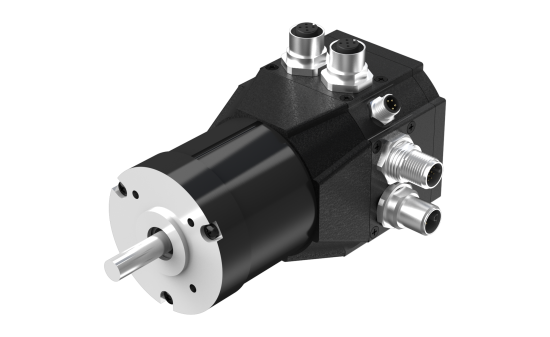

Our BLDC motors with integrated controller offer the compactness of a standard motor together with all the features of our drives. These motors have digital inputs and outputs and an analogue input, and can be also equipped with several Fieldbuses such as: CANopen, Modbus RTU, EtherCAT, Modbus TCP/IP, Profinet, EtherNet/IP, Powerlink. These models are IP65 rated as standard so that they can be used in a wide variety of environments without concern.


More about BLDC motors with Motion controller

Available with:
- Safe Torque Off (STO) SIL3/PLe
- Magnetic Absolute Multiturn (BiSS) Encoder: 17 bit, 16 bit
 		IBIX57B -IP65 with Brake
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
CANopen
CANopen - programmable
EtherCAT
EtherNet/IP
Modbus-RTU
Modbus TCP
PowerLink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Torque (Nm)
Rated Power (Watt)
Operating Voltage (Vdc)
Brake
IBIX57B 025BX100X M-S200 57 130 Modbus-RTU 0.06 25 24-48 24VDC - 1,0Nm
IBIX57B 025BX100X C-S200 57 130 CANopen - programmable 0.06 25 24-48 24VDC - 1,0Nm
IBIX57B 025NB100X C-S402 57 130 CANopen 0.06 25 24-48 24VDC - 1,0Nm
IBIX57B 025BXX00X E-S402 57 130 EtherCAT 0.06 25 24-48 24VDC - 1,0Nm
IBIX57B 025BXX00X T-S200 57 130 Modbus TCP 0.06 25 24-48 24VDC - 1,0Nm
IBIX57B 025BX200X P-S200 57 130 Profinet 0.06 25 24-48 24VDC - 1,0Nm
IBIX57B 025BX200X R-S402 57 130 PowerLink 0.06 25 24-48 24VDC - 1,0Nm
IBIX57B 025BX200X H-S200 57 130 EtherNet/IP 0.06 25 24-48 24VDC - 1,0Nm
IBIX57B 046BX100X M-S200 57 140 Modbus-RTU 0.11 49 24-48 24VDC - 1,0Nm
IBIX57B 046BX100X C-S200 57 140 CANopen - programmable 0.11 49 24-48 24VDC - 1,0Nm
IBIX57B 046BX100X C-S402 57 140 CANopen 0.11 49 24-48 24VDC - 1,0Nm
IBIX57B 046BXX00X E-S402 57 140 EtherCAT 0.11 49 24-48 24VDC - 1,0Nm
IBIX57B 046BXX00X T-S200 57 140 Modbus TCP 0.11 49 24-48 24VDC - 1,0Nm
IBIX57B 046BX200X P-S200 57 140 Profinet 0.11 49 24-48 24VDC - 1,0Nm
IBIX57B 046BX200X R-S402 57 140 PowerLink 0.11 49 24-48 24VDC - 1,0Nm
IBIX57B 046BX200X H-S200 57 140 EtherNet/IP 0.11 49 24-48 24VDC - 1,0Nm
IBIX57B 092BX100X M-S200 57 160 Modbus-RTU 0.22 92 24-48 24VDC - 1,0Nm
IBIX57B 092BX100X C-S200 57 160 CANopen - programmable 0.22 92 24-48 24VDC - 1,0Nm
IBIX57B 092BX100X C-S402 57 160 CANopen 0.22 92 24-48 24VDC - 1,0Nm
IBIX57B 092BXX00X E-S402 57 160 EtherCAT 0.22 92 24-48 24VDC - 1,0Nm
IBIX57B 092BXX00X T-S200 57 160 Modbus TCP 0.22 92 24-48 24VDC - 1,0Nm
IBIX57B 092BX200X P-S200 57 160 Profinet 0.22 92 24-48 24VDC - 1,0Nm
IBIX57B 092BX200X R-S402 57 160 PowerLink 0.22 92 24-48 24VDC - 1,0Nm
IBIX57B 092BX200X H-S200 57 160 EtherNet/IP 0.22 92 24-48 24VDC - 1,0Nm
IBIX57B 138BX100X M-S200 57 180 Modbus-RTU 0.33 138 24-48 24VDC - 1,0Nm
IBIX57B 138BX100X C-S200 57 180 CANopen - programmable 0.33 138 24-48 24VDC - 1,0Nm
IBIX57B 138BX100X C-S402 57 180 CANopen 0.33 138 24-48 24VDC - 1,0Nm
IBIX57B 138BXX00X E-S402 57 180 EtherCAT 0.33 138 24-48 24VDC - 1,0Nm
IBIX57B 138BXX00X T-S200 57 180 Modbus TCP 0.33 138 24-48 24VDC - 1,0Nm
IBIX57B 138BX200X P-S200 57 180 Profinet 0.33 138 24-48 24VDC - 1,0Nm
IBIX57B 138BX200X R-S402 57 180 PowerLink 0.33 138 24-48 24VDC - 1,0Nm
IBIX57B 138BX200X H-S200 57 180 EtherNet/IP 0.33 138 24-48 24VDC - 1,0Nm
IBIX57B 184BX100X M-S200 57 200 Modbus-RTU 0.44 184 24-48 24VDC - 1,0Nm
IBIX57B 184BX100X C-S200 57 200 CANopen - programmable 0.44 184 24-48 24VDC - 1,0Nm
IBIX57B 184BX100X C-S402 57 200 CANopen 0.44 184 24-48 24VDC - 1,0Nm
IBIX57B 184BXX00X E-S402 57 200 EtherCAT 0.44 184 24-48 24VDC - 1,0Nm
IBIX57B 184BXX00X T-S200 57 200 Modbus TCP 0.44 184 24-48 24VDC - 1,0Nm
IBIX57B 184BX200X P-S200 57 200 Profinet 0.44 184 24-48 24VDC - 1,0Nm
IBIX57B 184BX200X R-S402 57 200 PowerLink 0.44 184 24-48 24VDC - 1,0Nm
IBIX57B 184BX200X H-S200 57 200 EtherNet/IP 0.44 184 24-48 24VDC - 1,0Nm
