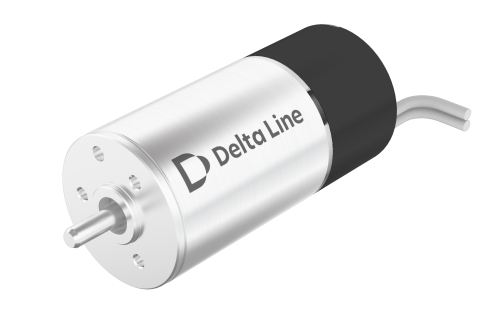

16EC -P

16EC33P-12V-2W

16EC33P-12V-2W

Product Code: 16EC33P-12V-8000-2W.001
Technical Data Download Dimensions Combinations
Size16 mmLength (L)33.5 mm
Rated Torque0.002 NmRated Current0.37 A
Rated Voltage12 VdcRated Speed8080 rpm
Stall Torque5.76 mNmTorque Constant0.008 Nm/A
Stall Current0.801 ANo-Load Current73 mA
No-Load Speed13800 rpmSpeed Range5360-17400 rpm
Rotor Inertia0.428 gcm2Max. Efficiency49 %
Mechanical Time Constant11.3 msWeight0.032 Kg
Max. Speed20000 rpmRadial PlayPreloaded
Axial Play< 1.5N 0mm / > 1.5N 0.14mm mmMax. Radial Force (5mm from flange)6 N
Max. Axial Force1 NPress-Fit Max.18 N
