26DC -P

26DC44P-12V-PM

26DC44P-12V-PM

Product Code: 26DC44P-12V-3702-PM.001

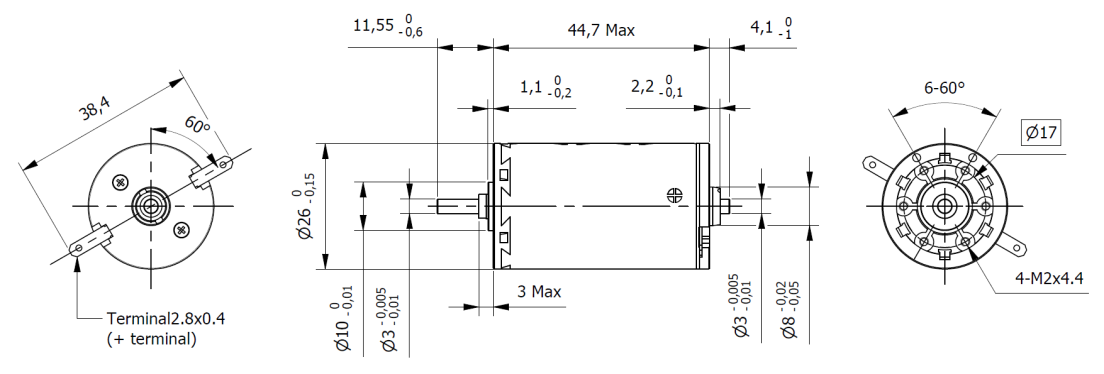

Technical Data Download Dimensions Combinations
CommutationPrecious Metal Brushes Size26 mm
Length (L)44.7 mmWeight120 g
Rated Voltage12 VdcRated Torque20.8 mNm
Rated Speed3790 rpmStall Torque140 mNm
Torque Constant25.6 mNm/AMotor Regulation3.3 103/Nms
Rated Current0.84 AStall Current5.49 A
No-Load Current27 mANo-Load Speed4460 rpm
Line to Line Resistance2.19 OhmLine to Line Inductance0.278 mH
Rotor Inertia14.9 gcm2Max. Efficiency87 %
Mechanical Time Constant4.99 msAmbient Temperature Sleeve bearings-30 / +65 °C
Max. Winding Temperature85 °CMax. Speed6700 rpm
Radial Play0.012mm Axial Play0.1 / 0.2 mm
Max. Radial Force (5mm from flange)5.5 NMax. Axial Force2 N
Press-Fit Max.80 N
