35DC -N

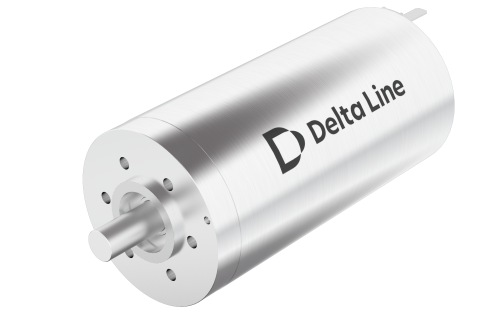

35DC70N-12V-G

35DC70N-12V-G

Product Code: 35DC70N-12V-76007-G.001

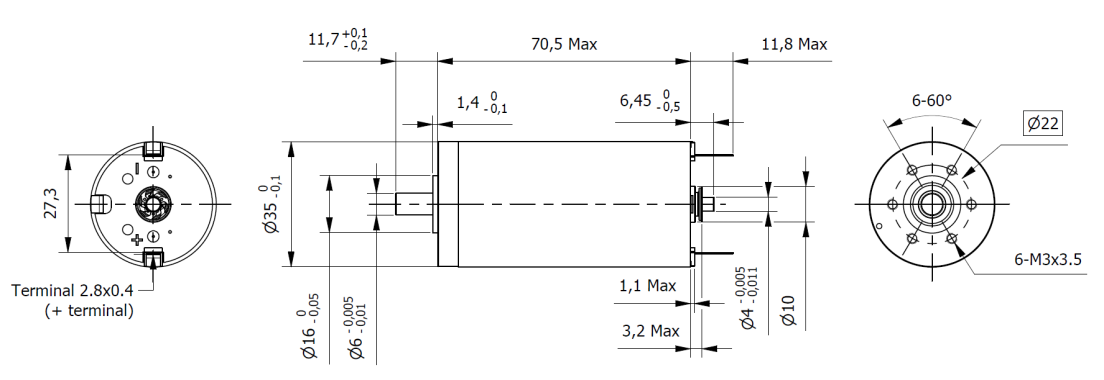

Technical Data Download Dimensions Combinations
CommutationGraphite Brushes Size35 mm
Length (L)70.5 mmWeight385 g
Rated Voltage12 VdcRated Torque77.7 mNm
Rated Speed7610 rpmStall Torque2080 mNm
Torque Constant13.7 mNm/AMotor Regulation0.4 103/Nms
Rated Current6 AStall Current152 A
No-Load Current320 mANo-Load Speed8130 rpm
Line to Line Resistance0.079 OhmLine to Line Inductance0.026 mH
Rotor Inertia99.5 gcm2Max. Efficiency85 %
Mechanical Time Constant4.21 msAmbient Temperature Ball Bearings-40 / +100 °C
Max. Winding Temperature155 °CMax. Speed12300 rpm
Radial Play0.02mm Axial Play0 / 0.1 mm
Max. Radial Force (5mm from flange)65.3 NMax. Axial Force7 N
Press-Fit Max.23 N
