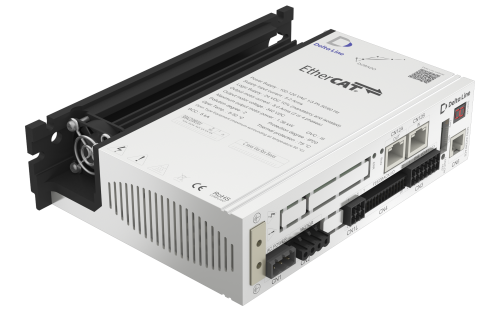

Stepless Control Technology (65536 emulated positions per turn)
Protective functions
Over current, Over/Under Voltage, Overheating, Short circuit
Protection Class
IP20
Pollution degree
2
Operating Temperature
+5 / +40°C
Humidity
5 - 85%
Digital Inputs
4 opto-coupled
Digital Outputs
3 opto-coupled
Encoder Inputs
Incremental 5V differential (RS422) or 5V Single-Ended (TTL/CMOS) or absolute 5V SSI or BiSS-C
Encoder Outputs
5V differential RS422 (isolated)

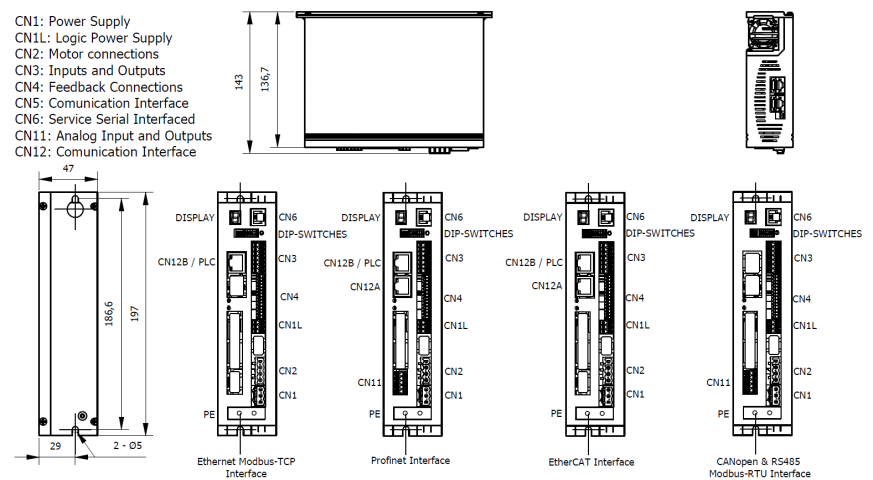

Technical Files
Datasheet
3D STEP file
Short manual
Other documents
Declaration of conformity - Dorado
All motors and servomotors with Phase Current up to 8A rms.
Custom combinations are available on request. Contact us
DL Studio
DL Studio is a PC Window program that allows the configuration and debugging of all stepper and brushless motor and drives. Easy and intuitive, DL Studio allows users to configure of all the main operating parameters through guided procedures, real-time monitoring of all the operating parameters and allowing access to the alarm history memory.
With DL Studio it is possible to create configuration profiles and save them to your PC to be downloaded in each new drive depending on the needs of the application. In addition, it also allows you to update the firmware version of our drives.
Software
Manual
Service SCI Interface cable is required for programming and available on request.
