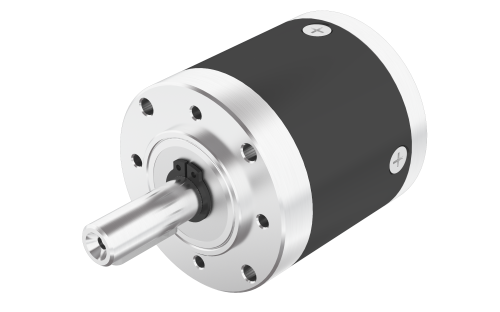

GP42-N1-4

GP42-N1-4

Series GP   |  Size 42 mm  |  Length (L) 51 mm  |  Reduction Ratio 4   |  Nominal Output Torque 1.22 Nm  |  Max. Input Speed 7650 rpm

Product Code: GP42-N1-4.000

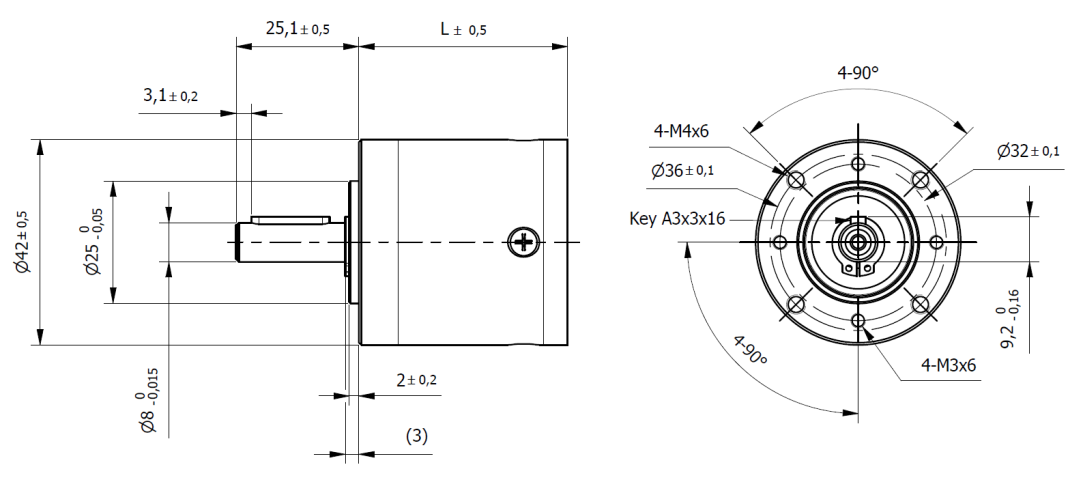

Technical Data Download Dimensions
SeriesGP Size42 mm
Length (L)51 mmStages1
Reduction Ratio4 Nominal Output Torque1.22 Nm
Max. Input Speed7650 rpmMax. Output Torque3.66 Nm
Recommended Input Speed3000 rpmEfficiency92 %
Moment of Inertia(≤φ6.35) 0.72 kgmm2Weight300 g
Backlash at 2% nominal output torque≤1.75 °Press-Fit Max.320 N
Noise level≤50 dBOperating Temperature-15°C +50°C
Protection ClassIP54 Bearing outputBall Bearings
