GP42-N2-30 GP42 -N Low noise | Delta Line

Home   Products   >   Gearboxes   >   Planetary gearboxes   >   GP42 -N Low noise

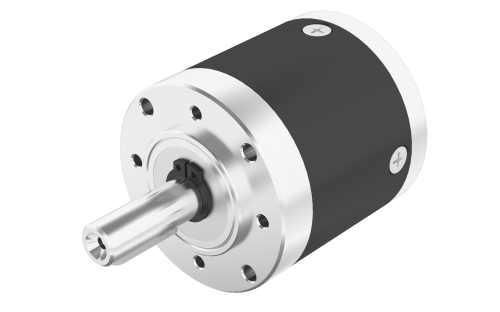

GP42-N2-30

GP42-N2-30

Series GP   |  Size 42 mm  |  Length (L) 65 mm  |  Reduction Ratio 30   |  Nominal Output Torque 4.9 Nm  |  Max. Input Speed 10200 rpm

Product Code: GP42-N2-30.000

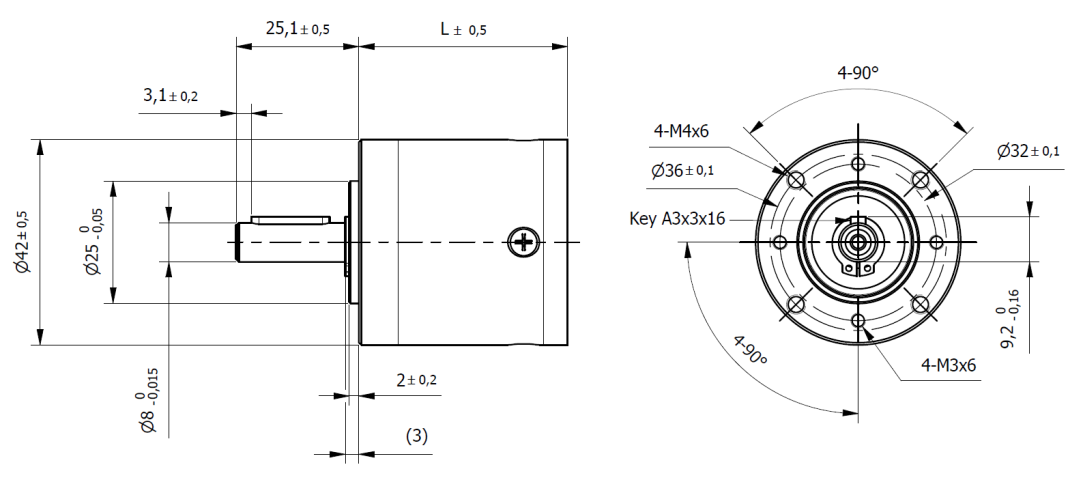

Technical Data Download Dimensions
SeriesGP Size42 mm
Length (L)65 mmStages2
Reduction Ratio30 Nominal Output Torque4.9 Nm
Max. Input Speed10200 rpmMax. Output Torque9.8 Nm
Recommended Input Speed3000 rpmEfficiency86 %
Moment of Inertia(≤φ6.35) 0.32 kgmm2Weight400 g
Backlash at 2% nominal output torque≤1.75 °Press-Fit Max.320 N
Noise level≤50 dBOperating Temperature-15°C +50°C
Protection ClassIP54 Bearing outputBall Bearings
