GPW56 + 60BLWA38 Wheel Drives | Delta Line

Home   Products   >   Wheel Drives

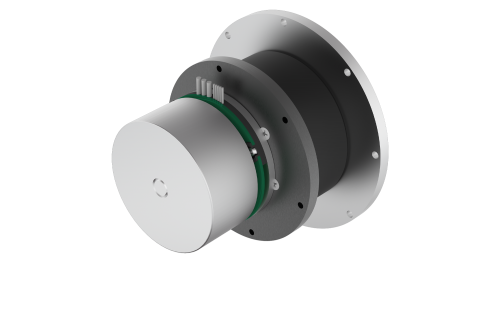

GPW56 + 60BLWA38

GPW56 + 60BLWA38

Max. load on wheel (radial load) 75 kg  |  Reduction Ratio 9.55   |  Nominal Output Torque 4.55 Nm  |  Max. Output Torque 14.89 Nm  |  Recommended Input Speed 1060 rpm  |  Max. Input Speed 13000 rpm

Product Code: GPW56-60BLWA38

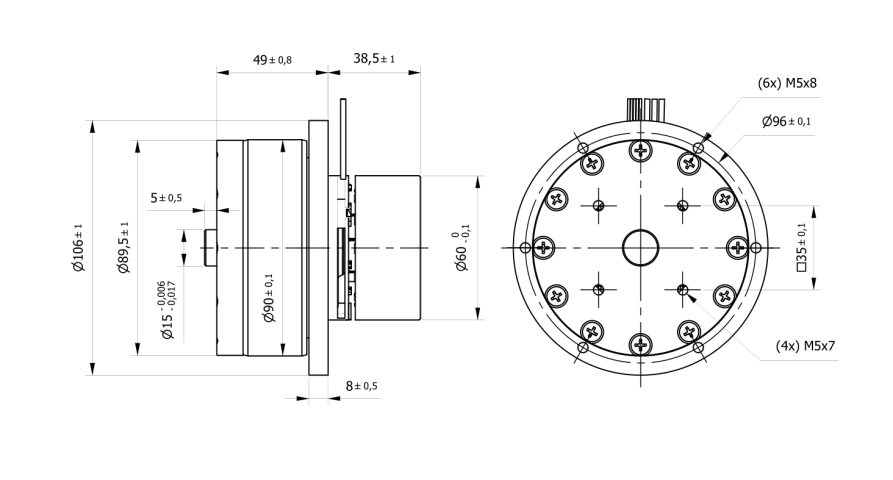

Technical Data Download Dimensions
Max. load on wheel (radial load)75 kgRated Voltage48 Vdc
Rated Current1.2 AStages1
Reduction Ratio9.55 Nominal Output Torque4.55 Nm
Max. Output Torque14.89 NmRecommended Input Speed1060 rpm
Max. Input Speed13000 rpmEfficiency92 %
Acc. @50kg, 160mm Ø wheel1 m/s2Acc. max. @50kg, 160mm Ø wheel3.09 m/s2
Rated speed, 160 mm wheel0.9 m/sWeight4.7 Kg
Backlash at 2% nominal output torque≤30 °Protection classIP44 (optional IP54)
Operating Temperature-15°C +90°C
