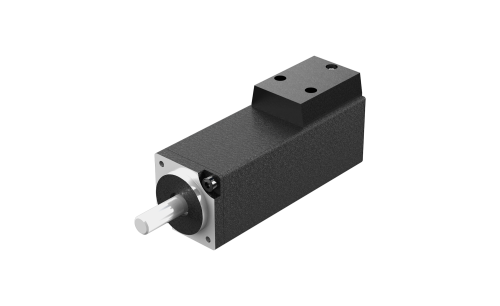

25SV03-24V-30EA1

25SV03-24V-30EA1

Size 25 mm  |  Length (L) 73 mm  |  Nominal Voltage 24 VDC   |  Rated Torque 0.095 Nm  |  Rated Speed 3000 rpm

Product Code: 25SV03-24V-30EA1

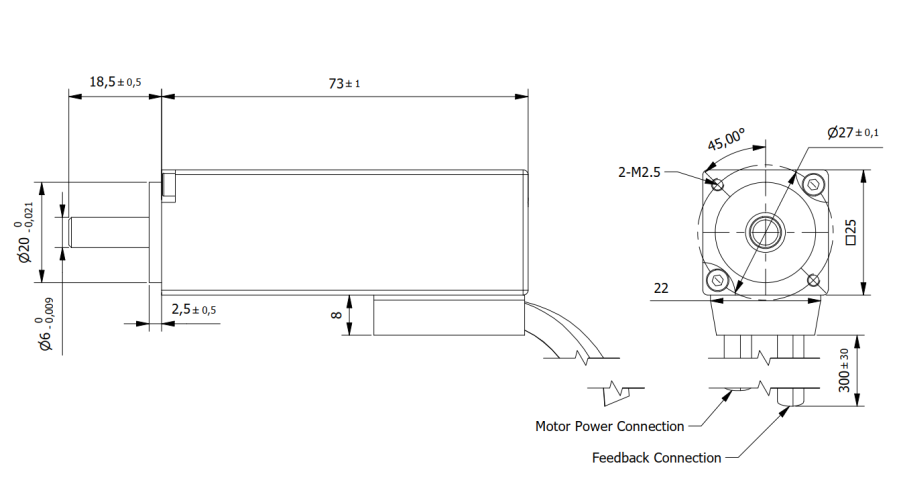

Technical Data Download Dimensions Combinations
Size25 mmLength (L)73 mm
Nominal Voltage24 VDC Rated Torque0.095 Nm
Rated Speed3000 rpmn° of Pole8
n° of Phase3 Rated Power30 Watt
Max. Peak Torque0.285 NmTorque Constant0.057 Nm/A
Rated Current2 AMax. Peak Current6 A
Back EMF constant3.42 V/kRPMLine to Line Resistance2.3±10% Ohm
Line to Line Inductance0.7±20% mHRotor Inertia1.27 gcm2
Weight0.2 KgProtection ClassIP54
Insulation ClassF 155°C Radial Play0.02mm (max.4N)
Axial Play0.14mm (max.4N) mmMax. Radial Force (14mm from flange)6 N
Max. Axial Force5 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmEncoder Type - StandardMagnetic Absolute Multi-turn:17,16 bit
Encoder Type - Optionalon demand
