IVI100


IVI100

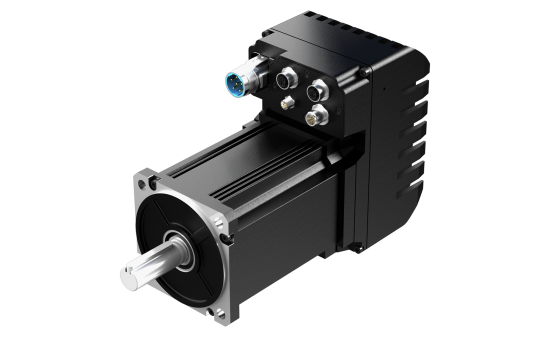

Our Servo Motors with integrated controller are among the most compact on the market. The powerful drive built directly into the motor reduces cabling and simplifies installation and setup, enhancing overall efficiency. These high-performing motors are IP65 rated, STO (Safe Torque Off) certified, and available with an optional integrated brake. All models support a wide range of Fieldbus protocols, including CANopen, Modbus-RTU, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP and Powerlink.


More about Servo motors with Motion controller

IVI100
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
CANopen
CANopen - programmable
EtherCAT
EtherNet/IP
Modbus-RTU
Modbus TCP
PowerLink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Power (Watt)
Rated Torque (Nm)
Brake
IVI100 1000NX1000 M-S200 100 207 Modbus-RTU 1000 3.18
IVI100 1000NX1000 C-S200 100 207 CANopen - programmable 1000 3.18
IVI100 1000NX1000 C-S402 100 207 CANopen 1000 3.18
IVI100 1000NXX000 T-S200 100 207 Modbus TCP 1000 3.18
IVI100 1000NXX000 E-S402 100 207 EtherCAT 1000 3.18
IVI100 1000NX3000 P-S200 100 207 Profinet 1000 3.18
IVI100 1000NX3000 R-S402 100 207 PowerLink 1000 3.18
IVI100 1000NX3000 H-S200 100 207 EtherNet/IP 1000 3.18
IVI100 1500NX1000 M-S200 100 235 Modbus-RTU 1500 4.77
IVI100 1500NX1000 C-S200 100 235 CANopen - programmable 1500 4.77
IVI100 1500NX1000 C-S402 100 235 CANopen 1500 4.77
IVI100 1500NXX000 T-S200 100 235 Modbus TCP 1500 4.77
IVI100 1500NXX000 E-S402 100 235 EtherCAT 1500 4.77
IVI100 1500NX3000 P-S200 100 235 Profinet 1500 4.77
IVI100 1500NX3000 R-S402 100 235 PowerLink 1500 4.77
IVI100 1500NX3000 H-S200 100 235 EtherNet/IP 1500 4.77
