Home Products > Motors with integrated Controller > BLDC Servo motors with Motion controller > IVI100

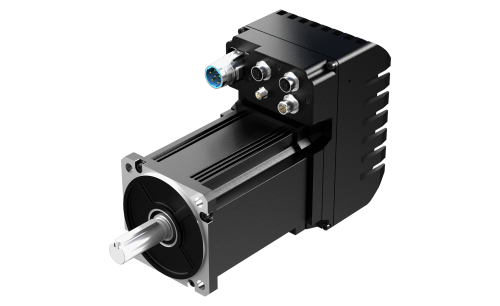

IVI100 1000NXX000 E-S402

Size 100 mm | Length (L) 207 mm | Interface EtherCAT | Rated Power 1000 Watt | Rated Torque 3.18 Nm | Rated Current 31.8 A | Rated Voltage 48 Vdc

Product Code: IVI1001000NXX000E-S402

Technical Data

Download

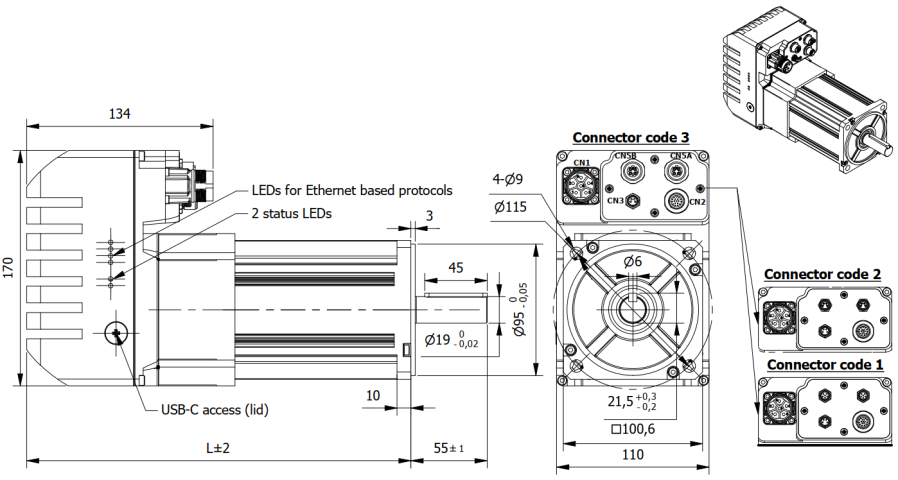

Dimensions

Combinations

Software

Accessories

Size	100 mm	Length (L)	207 mm
Interface	EtherCAT	Rated Power	1000 Watt
Rated Torque	3.18 Nm	Rated Current	31.8 A
Rated Voltage	48 Vdc	n° of Pole	10
Rated Speed	3000 rpm	Max. Peak Torque	7 Nm
Torque Constant	0.1 Nm/A	Max. Peak Current	70 A
No-Load Current	0.8 A	Back EMF constant	6.18 V/kRPM
Rotor Inertia	1.3 Kgcm²	Weight	5.4 Kg
Shaft run out	0.05 mm	Insulation Class	B 130°C
Protection Class	IP65	Operating Temperature	+5°C to +40°C
Humidity	5% to 85% not condensing	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial force (at mid-shaft)	490 N
Max. Axial Force	196 N	Dielectric Strength (for 1min.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Position, Speed, Torque
Encoder Type - Standard	Magnetic Incremental/Absolute single turn 2500 CPR	Encoder Type - Optional	Magnetic Absolute multi-turn 16bit (single-turn 17bit)
Protective functions	Over/Under voltage, Over current, Overheating, Short circuit	Safety feature	Safe Torque Off (STO) SIL3/PLe
Debug & configuration	Serial interface	Digital Inputs	4 not isolated 5-24 Vdc PNP
Analog Inputs	2 not isolated \| 0-10 Vdc	Digital Outputs	2 not isolated 24 Vdc PNP
