IVI110


IVI110

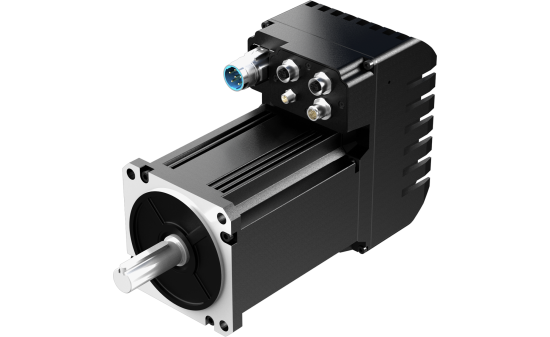

Our Servo Motors with integrated controller are among the most compact on the market. The powerful drive built directly into the motor reduces cabling and simplifies installation and setup, enhancing overall efficiency. These high-performing motors are IP65 rated, STO (Safe Torque Off) certified, and available with an optional integrated brake. All models support a wide range of Fieldbus protocols, including CANopen, Modbus-RTU, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP and Powerlink.


More about Servo motors with Motion controller

IVI110
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
CANopen
CANopen - programmable
EtherCAT
EtherNet/IP
Modbus-RTU
Modbus TCP
PowerLink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Power (Watt)
Rated Torque (Nm)
Brake
IVI110 1500NX1000 M-S200 110 218 Modbus-RTU 1500 4.77
IVI110 1500NX1000 C-S200 110 218 CANopen - programmable 1500 4.77
IVI110 1500NX1000 C-S402 110 218 CANopen 1500 4.77
IVI110 1500NXX000 T-S200 110 218 Modbus TCP 1500 4.77
IVI110 1500NXX000 E-S402 110 218 EtherCAT 1500 4.77
IVI110 1500NX3000 P-S200 110 218 Profinet 1500 4.77
IVI110 1500NX3000 R-S402 110 218 PowerLink 1500 4.77
IVI110 1500NX3000 H-S200 110 218 EtherNet/IP 1500 4.77
IVI110 2000NX1000 M-S200 110 236 Modbus-RTU 2000 6.37
IVI110 2000NX1000 C-S200 110 236 CANopen - programmable 2000 6.37
IVI110 2000NX1000 C-S402 110 236 CANopen 2000 6.37
IVI110 2000NXX000 T-S200 110 236 Modbus TCP 2000 6.37
IVI110 2000NXX000 E-S402 110 236 EtherCAT 2000 6.37
IVI110 2000NX3000 P-S200 110 236 Profinet 2000 6.37
IVI110 000NX3000 R-S402 110 236 PowerLink 2000 6.37
IVI110 2000NX3000 H-S200 110 236 EtherNet/IP 2000 6.37
