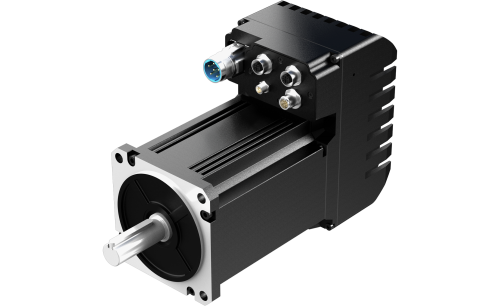

IVI110 1500NX3000 H-S200

Size 110 mm | Length (L) 218 mm | Interface EtherNet/IP | Rated Power 1500 Watt | Rated Torque 4.77 Nm | Rated Current 43 A | Rated Voltage 48 Vdc

Product Code: IVI1101500NX3000H-S200

Technical Data

Download

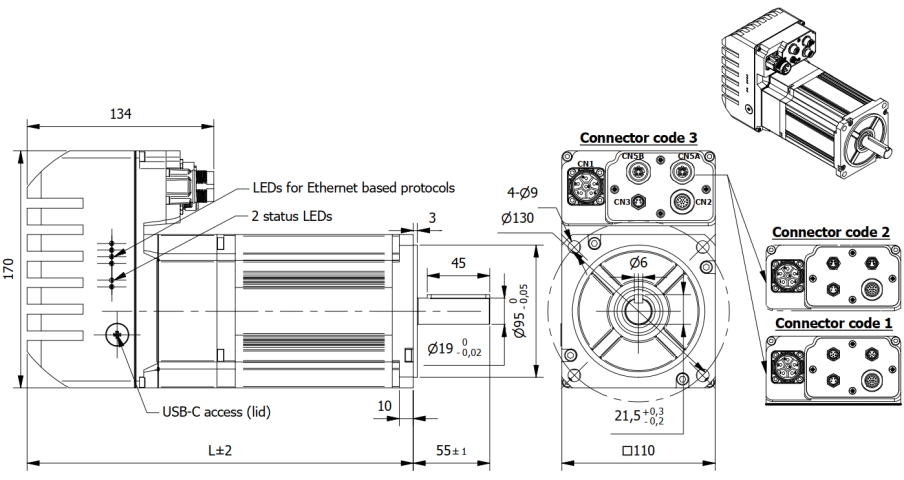

Dimensions

Combinations

Software

Accessories

Size	110 mm	Length (L)	218 mm
Interface	EtherNet/IP	Rated Power	1500 Watt
Rated Torque	4.77 Nm	Rated Current	43 A
Rated Voltage	48 Vdc	n° of Pole	10
Rated Speed	3000 rpm	Max. Peak Torque	14.3 Nm
Torque Constant	0.11 Nm/A	Max. Peak Current	130 A
No-Load Current	0.8 A	Back EMF constant	6.35 V/kRPM
Rotor Inertia	3.1 Kgcm²	Weight	6.9 Kg
Shaft run out	0.05 mm	Insulation Class	B 130°C
Protection Class	IP65	Operating Temperature	+5°C to +40°C
Humidity	5% to 85% not condensing	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial force (at mid-shaft)	630 N
Max. Axial Force	315 N	Dielectric Strength (for 1min.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Position, Speed, Torque
Encoder Type - Standard	Magnetic Incremental/Absolute single turn 2500 CPR	Encoder Type - Optional	Magnetic Absolute multi-turn 16bit (single-turn 17bit)
Protective functions	Over/Under voltage, Over current, Overheating, Short circuit	Safety feature	Safe Torque Off (STO) SIL3/PLe
Debug & configuration	Serial interface	Digital Inputs	4 not isolated 5-24 Vdc PNP
Analog Inputs	2 not isolated \| 0-10 Vdc	Digital Outputs	2 not isolated 24 Vdc PNP
