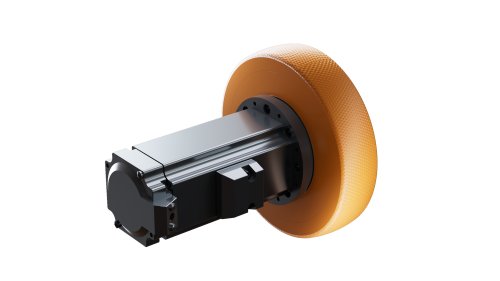

Wheel 60 SV10-48V

Wheel 60 SV10-48V

Size 60 mm  |  Nominal Output Power 120 W  |  Max. Radial load 800 N  |  Max Linear Speed (unloaded) 4 m/s  |  Hub ratio 9:1 / 30:1

Product Code: Wheel60SV10-48V

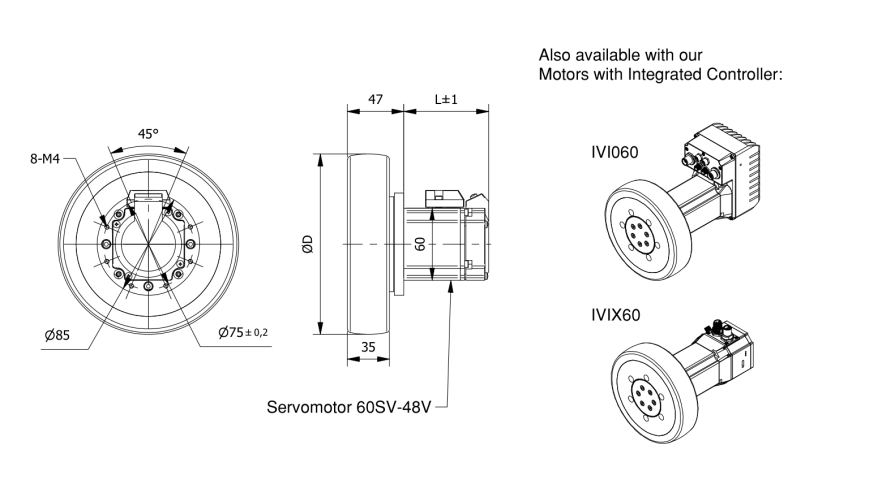

Technical Data Download Dimensions
Size60 mmNominal Voltage48 V
Nominal Current3,2 ANominal Output Power120 W
Max. Radial load800 NMax Linear Speed (unloaded)4 m/s
Peak Output Power (1 to 2 sec.)360 WHub ratio9:1 / 30:1
Tire Ø150 - 280 mmn° of Pole10
n° of Phase3 Length (Without brake)71 mm
Length (With brake)106 mmBrake Option24 V - 1,5 Nm
