100SV-48VDC

Home   Products   >   Servomotors   >   Low voltage servomotors   >   100SV-48VDC

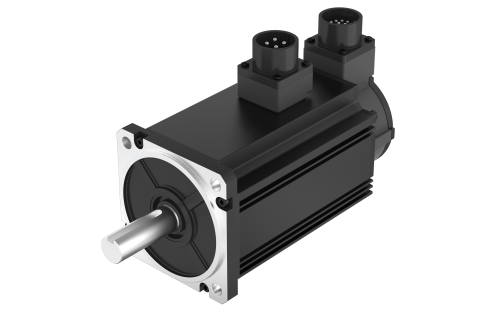

100SV150-48V-30EA2

100SV150-48V-30EA2

Product Code: 100SV150-48V-30EA2

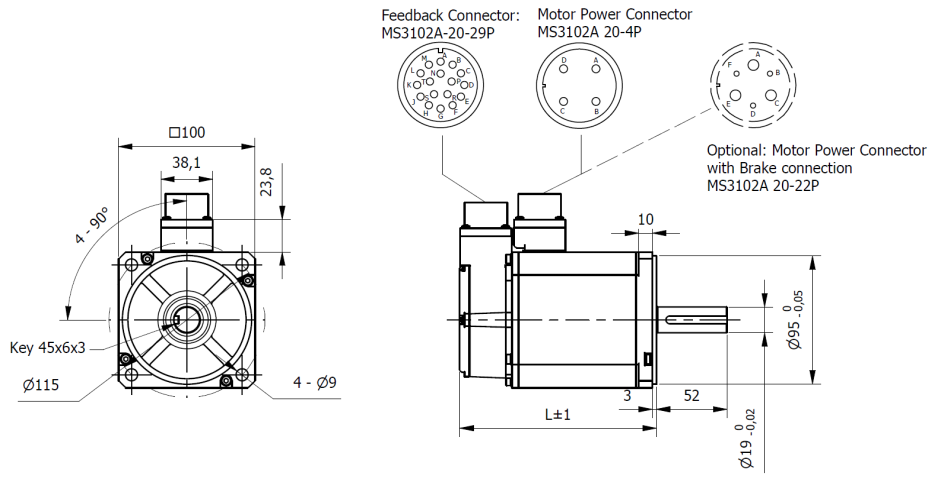

Technical Data Download Dimensions Combinations
Size100 mmLength (L)199 mm
Nominal Voltage48 VDC Rated Torque4.77 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power1500 Watt
No-Load Speed5000±10% rpmMax. Peak Torque10.5 Nm
Torque Constant0.11 Nm/ARated Current43.4 A
Max. Peak Current95.5 ANo-Load Current0.8 A
Back EMF constant6.48 V/kRPMLine to Line Resistance0.015±10% Ohm
Line to Line Inductance0.15±20% mHRotor Inertia2.21 Kgcm2
Brake24VDC - 10Nm Weight5.7 Kg
Protection ClassIP65 Insulation ClassF 155°C
Radial Play0.02mm (max.4N) Axial Play0.08mm (max.4N) mm
Max. Radial Force (20mm from flange)490 NMax. Axial Force196 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Encoder Type - StandardOptical incremental 2500CPR Encoder Type - Optionalon demand
