60SV20-220V-30EA1

60SV20-220V-30EA1

Product Code: 60SV20-220V-30EA1

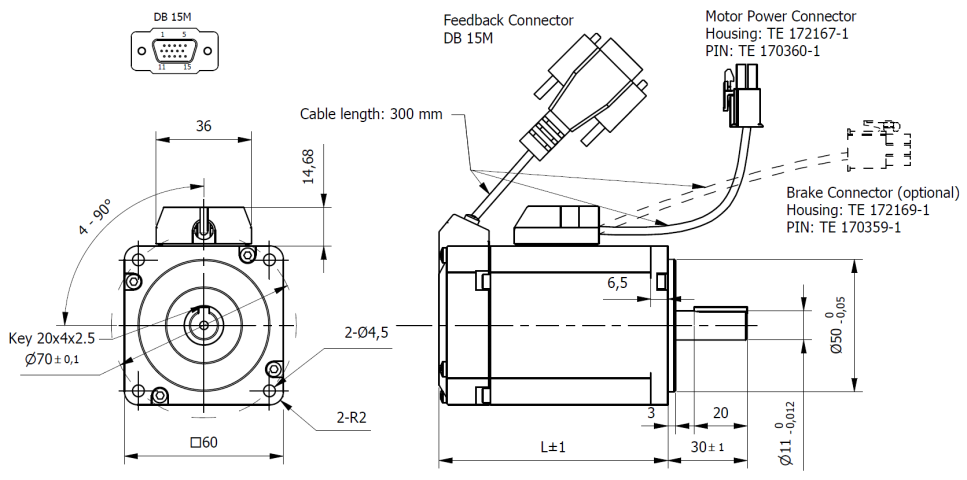

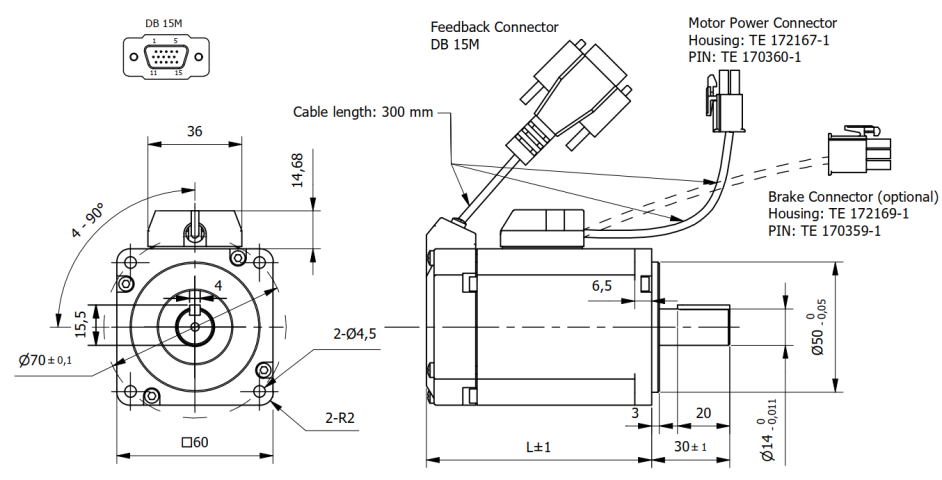

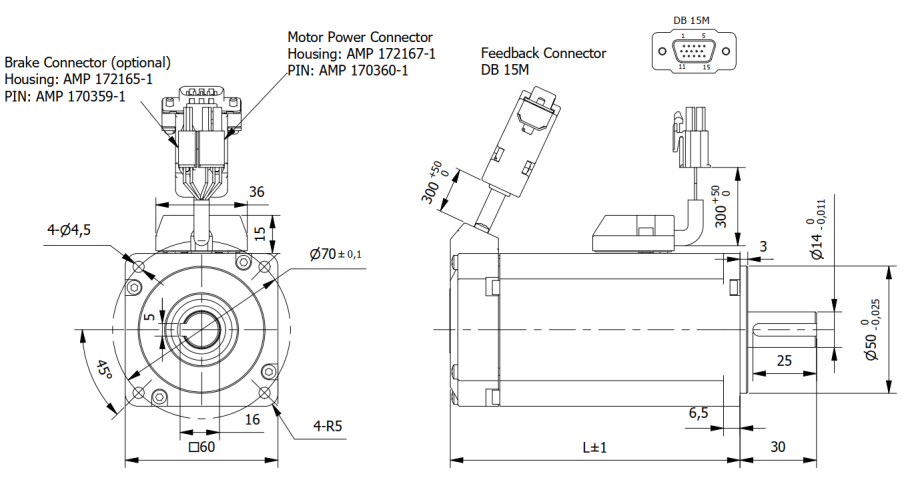

Technical Data Download Dimensions Combinations
Size60 mmLength (L)79 mm
Nominal Voltage220 VAC Rated Torque0.64 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power200 Watt
No-Load Speed8800±10% rpmMax. Peak Torque1.92 Nm
Torque Constant0.41 Nm/ARated Current1.7 A
Max. Peak Current5.1 ANo-Load Current0.17 A
Back EMF constant25 V/kRPMLine to Line Resistance5.7±10% Ohm
Line to Line Inductance10.6±20% mHRotor Inertia0.2 Kgcm2
Weight0.95 KgProtection ClassIP65
Insulation ClassF 155°C Radial Play0.02mm (max.4N)
Axial Play0.08mm (max.4N) mmMax. Radial Force (20mm from flange)245 N
Max. Axial Force98 NDielectric strength (for 1 sec.)1200 VAC
Insulation Resistance (min.500 VDC)100 MohmEncoder Type - StandardMagnetic incremental 2500CPR
Encoder Type - OptionalOptical incremental or Magnetic Absolute
