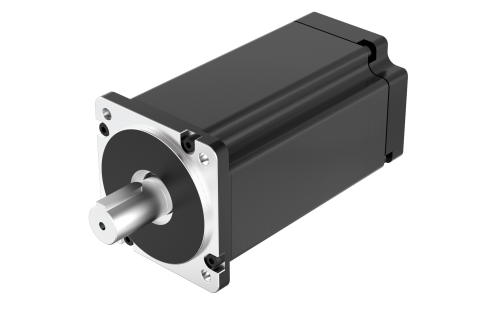

80SV-220VAC

80SV75-220V-30EA2

80SV75-220V-30EA2

Product Code: 80SV75-220V-30EA2

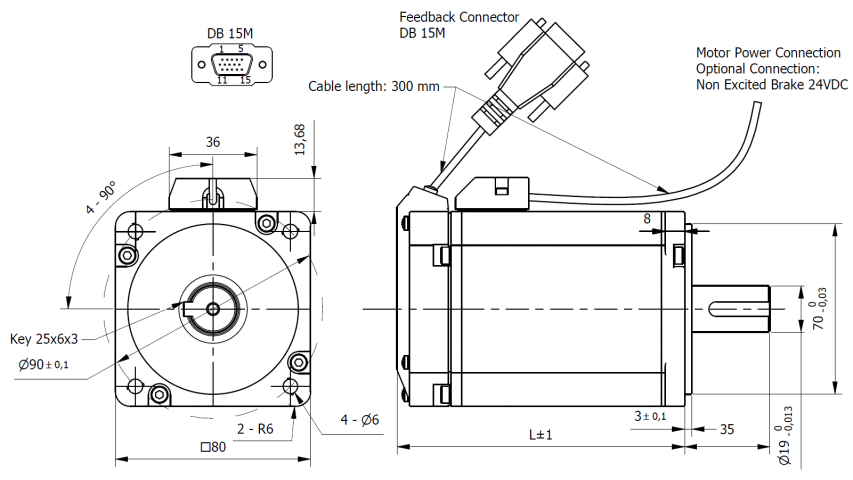

Technical Data Download Dimensions Combinations
Size80 mmLength (L)149 mm
Nominal Voltage220 VAC Rated Torque2.39 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power750 Watt
No-Load Speed6000±10% rpmMax. Peak Torque7.17 Nm
Torque Constant0.6 Nm/ARated Current4.4 A
Max. Peak Current13.2 ANo-Load Current0.6 A
Back EMF constant36 V/kRPMLine to Line Resistance1.77±10% Ohm
Line to Line Inductance5.6±20% mHRotor Inertia1.6 Kgcm2
Brake24VDC - 3.2Nm Weight3.1 Kg
Protection ClassIP65 Insulation ClassF 155°C
Radial Play0.02mm (max.4N) Axial Play0.08mm (max.4N) mm
Max. Radial Force (20mm from flange)392 NMax. Axial Force147 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Encoder Type - StandardOptical incremental 2500CPR Encoder Type - Optionalon demand
