Home Products > Motors with integrated Controller > BLDC Servo motors with Motion controller > IVI110 with Brake

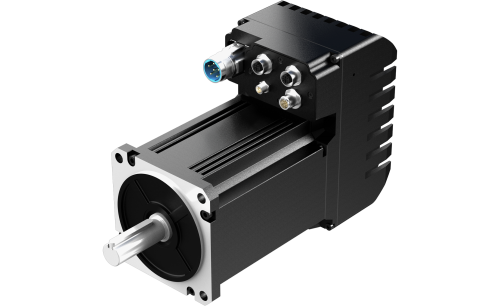

IVI110 1500BX3000 P-S200

Size 110 mm | Length (L) 261 mm | Interface Profinet | Rated Power 1500 Watt | Rated Torque 4.77 Nm | Rated Current 43 A | Rated Voltage 48 Vdc | Brake 24VDC - 10Nm

Product Code: IVI1101500BX3000P-S200

Technical Data

Download

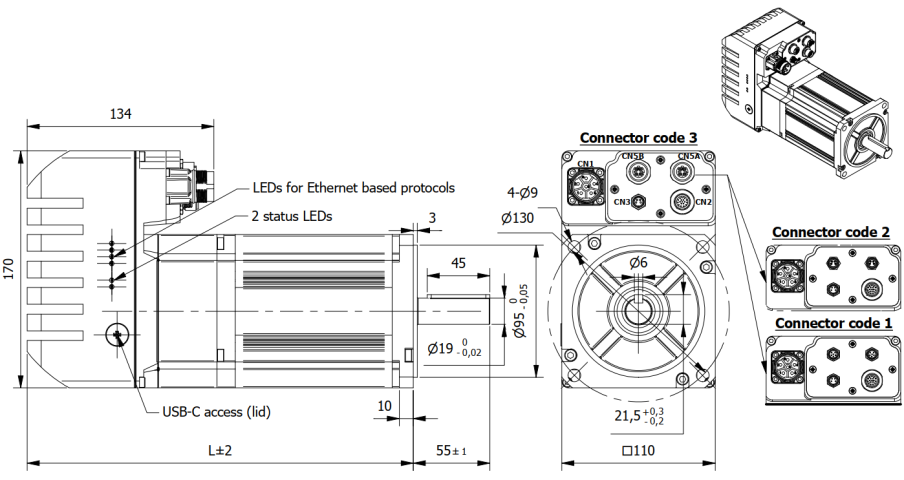

Dimensions

Combinations

Software

Accessories

Size	110 mm	Length (L)	261 mm
Interface	Profinet	Rated Power	1500 Watt
Rated Torque	4.77 Nm	Rated Current	43 A
Rated Voltage	48 Vdc	n° of Pole	10
Rated Speed	3000 rpm	Max. Peak Torque	14.3 Nm
Torque Constant	0.11 Nm/A	Max. Peak Current	130 A
No-Load Current	0.8 A	Back EMF constant	6.35 V/kRPM
Rotor Inertia	3.1 Kgcm²	Brake	24VDC - 10Nm
Weight	7.9 Kg	Shaft run out	0.05 mm
Insulation Class	B 130°C	Protection Class	IP65
Operating Temperature	+5°C to +40°C	Humidity	5% to 85% not condensing
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial force (at mid-shaft)	630 N	Max. Axial Force	315 N
Dielectric Strength (for 1min.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating mode	Position, Speed, Torque	Encoder Type - Standard	Magnetic Incremental/Absolute single turn 2500 CPR
Encoder Type - Optional	Magnetic Absolute multi-turn 16bit (single-turn 17bit)	Protective functions	Over/Under voltage, Over current, Overheating, Short circuit
Safety feature	Safe Torque Off (STO) SIL3/PLe	Debug & configuration	Serial interface
Digital Inputs	4 not isolated 5-24 Vdc PNP	Analog Inputs	2 not isolated \| 0-10 Vdc
Digital Outputs	2 not isolated 24 Vdc PNP
