SM28

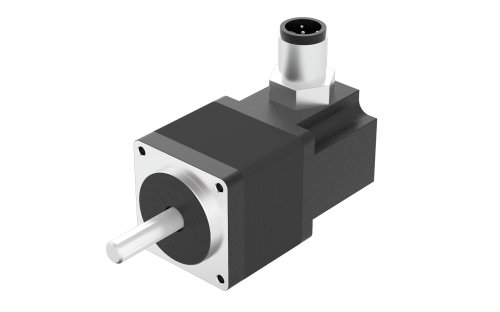

SM28 070-IP65

SM28 070-IP65

Product Code: SM28070-IP.000

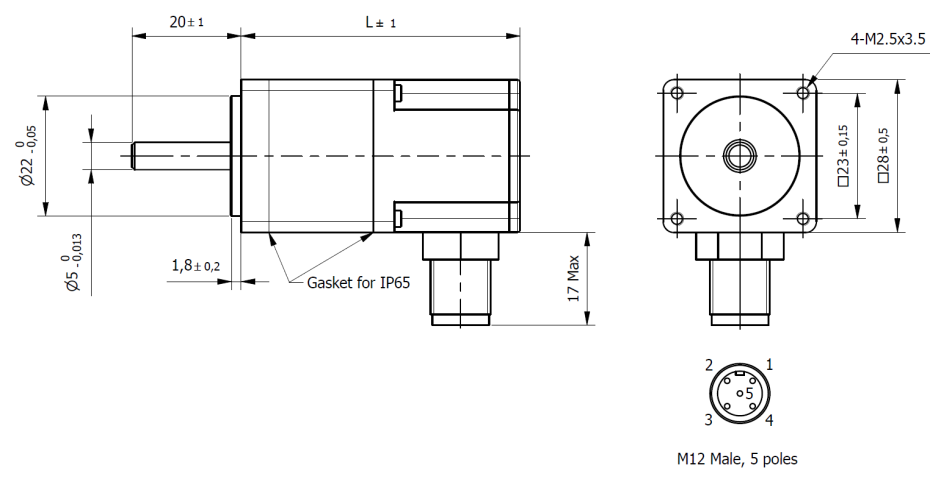

Technical Data Download Dimensions Combinations
Size28 mmNema11
Length (L)70.3 mmCurrent/Phase0.67 A
Holding Torque0.127 NmStep Angle1.8 °
Rated Voltage9,2 VdcResistance/Phase9.2 Ohm
Inductance/Phase7.2 mHRotor Inertia18 gcm2
Detent Torque0.036 NmN° of Leads4
Weight0.220 KgStep Angle accuracy± 5 %
Insulation ClassB Protection ClassIP65
Operating Temperature- 20°C + 50°C Max. Temp. Rise (rated current, 2-phase on)80 °C
Radial Play (450g load)0.03 Max mmAxial Play (450g load)0.08 Max mm
Max. Radial Force (on shaft end)21 NMax. Axial Force10 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
