63S10

63S10-1004A

63S10-1004A

Product Code: 63S10-1004A.000
Buy online:
RS logo

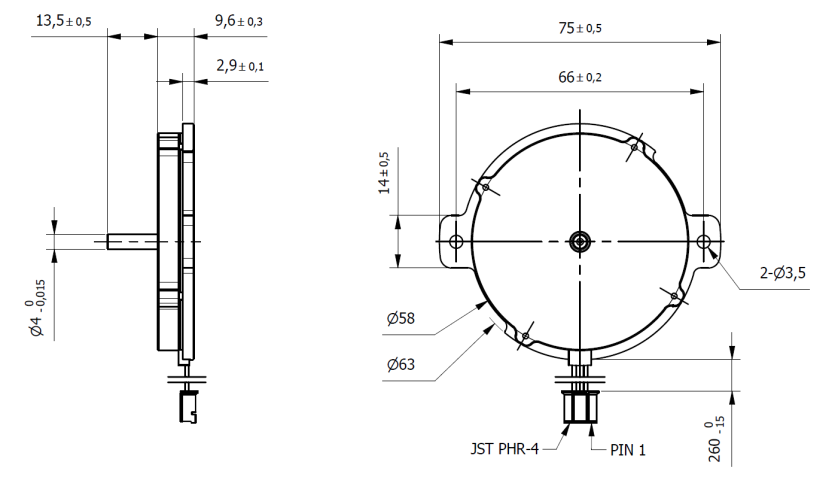

Technical Data Download Dimensions Combinations
Size63 mmLength (L)9.6 mm
Current/Phase1 AHolding Torque0.064 Nm
Step Angle1.8 °Rated Voltage3.8 Vdc
Resistance/Phase3.8 OhmInductance/Phase2 mH
Rotor Inertia16 gcm2N° of Leads4
Weight0.095 KgStep Angle accuracy±5 %
Insulation ClassB Protection ClassIP30
Operating Temperature-20°C +50°C Max. Temp. Rise (rated current, 2-phase on)80 °C
Radial Play (450g load)0.06 mmAxial Play (450g load)0.05 mm
Max. Radial Force (5mm from flange)5 NMax. Axial Force2 N
Dielectric Strength (for 1min.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
